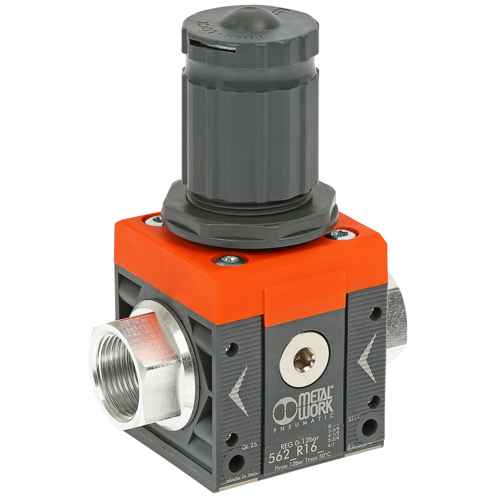

Pneumatic Regulator 3/4 Sy2 Reg 0-12Bar Synthesis

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDMWP5625R165

  ManufacturerMETAL WORK

  Characteristics

  - SYNTHESES SY2 regulator
  - pressure regulator provides pneumatic pressure to use the control unit to fit
  - to maintain pressure under stationary conditions
  - lockable knob
  - thread G 3/4"
  - Pressure gauge / air outlet G 1/4"
  - Adjustment range 0 - 12 bar
  - max. working pressure 13 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 4700 Nl/min
  - max. flow at a pressure of 6.3 bar (pressure drop 1 bar) 7600 Nl/min
  - max. flow rate (valve) at a pressure of 6.3 bar at 100 Nl/min
  - flow (exhaust) at 6.3 bar pressure of 1400 Nl/min
  - Operating temperature -10 ... + 50 ° C
  - medium: air or inert gas
  - installation of the desired position
  - fastening screws M5
  - Weight 515 g

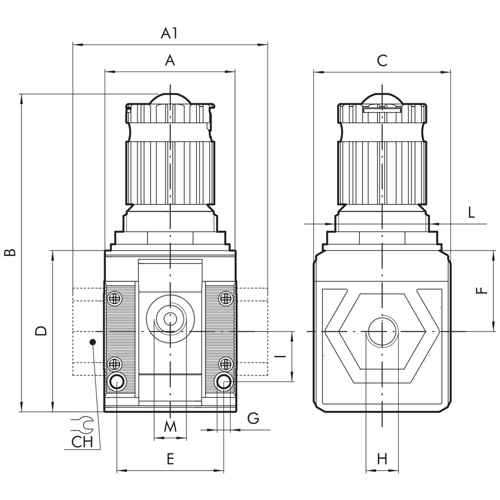

  Dimensions (mm):
  - A 61
  - A1 95
  - B 142
  - C 61
  - CH 32
  - D 70.5
  - E 47.5
  - F 38.2
  - G M5
  - I 22.5
  - L M38x2
  - M (pressure gauge / exhaust) 1/4 "
