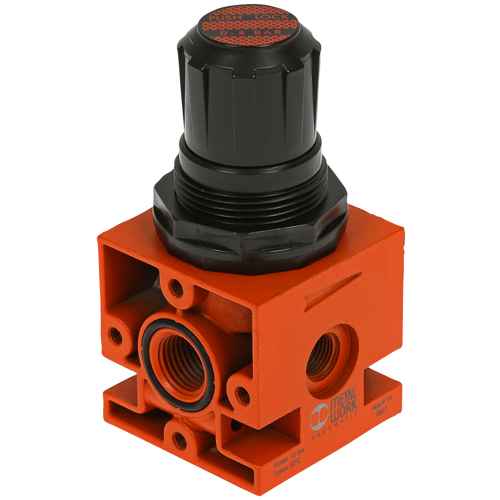

Pneumatic Regulator 1/4 Reg 0-4Bar New Deal

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDMWP1202001

  ManufacturerMETAL WORK

  Characteristics

  - new given regulator
  - pressure regulator provides pneumatic pressure to use the network unit to fit
  - to maintain the regulated pressure stable
  - excellent performance
  - safety valve
  - thread G 1/4 "
  - connection for pressure gauge G 1/8"
  - adjustment range 0 - 4 bar
  - max. operating pressure 18 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 200 Nl/min
  - max. flow at 6.3 bar pressure (pressure drop 1 bar) 650 Nl/min
  - max. operating temperature 50 ° C
  - medium: lubricated or unlubricated filtered compressed air (if lubrication is used, it must be continuous)
  - M4 screws 40
  - can be mounted on the wall
  - mounting to desired position
  - Weight 0.3 kg

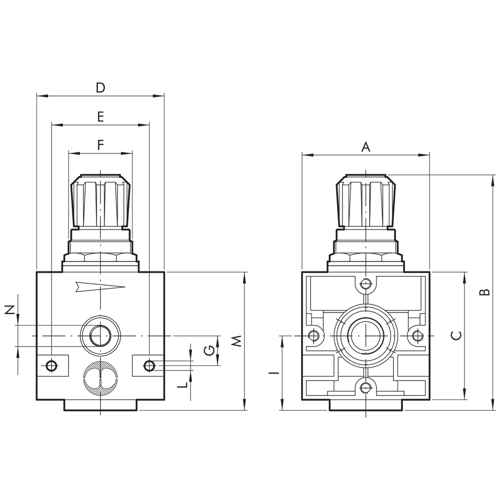

  Dimensions (mm):
  - A 42
  - B 94
  - C 42
  - D 42
  - E 32
  - F 30 x 1.5
  - G 10
  - I 25
  - L M4
  - M 49
  - N (connection for pressure gauge) 1/8 "
