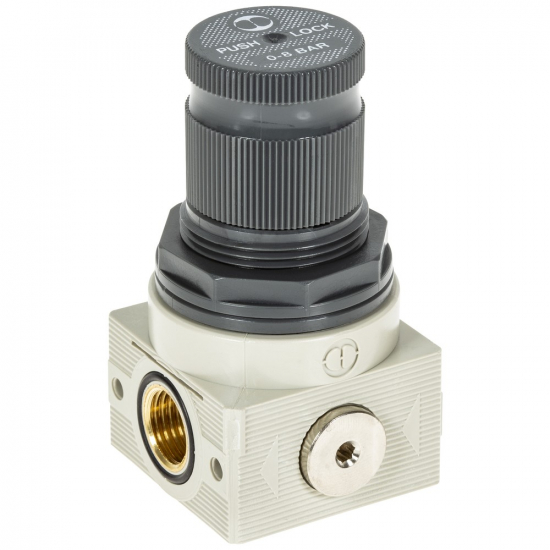

PNEUMATIC REGULATOR 1/4 0-8BAR BIT

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP5207003

  ManufacturerMETAL WORK

  Characteristics

  - BIT regulator
  - reduces the inlet pressure to set outlet pressure, this pressure is kept constant as long as the inlet pressure is higher than the set outlet pressure
  - the regulator maintains the preset pressure stable
  - thread G 1/4"
  - pressure gauge G 1/8"
  - pressure range 0 - 4 bar
  - max. working pressure 13 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 340 Nl/min
  - max. flow at 6.3 bar (pressure drop 1 bar) 600 Nl/min
  - maximum temperature at 10 bar +50 °C
  - media: compressed air or noble gas
  - installation in any position
  - fastening screws M4
  - weight 188 g
