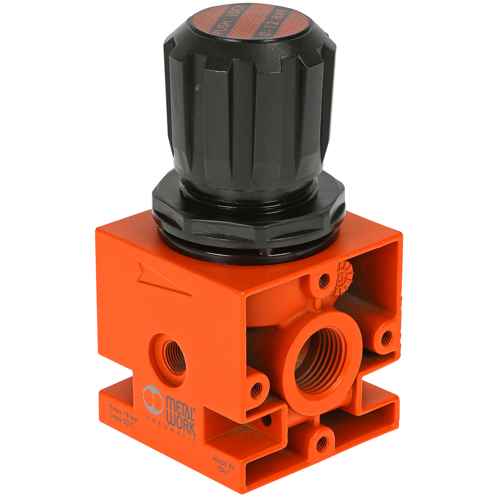

Pneumatic Regulator 1/2 Reg 0-12Bar New Deal

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDMWP1402003

  ManufacturerMETAL WORK

  Characteristics

  - New Deal regulator
  - The pressure regulator regulates the pressure in the compressed air system to suit the control unit
  - maintain the controlled pressure stable
  - excellent performance
  - relief valve
  - thread G 1/2 "
  - Connection for pressure gauge G 1/8 "
  - Adjustment range 0 to 12 bar
  - max. working pressure 18 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 1100 Nl/min
  - max. flow at a pressure of 6.3 bar (pressure drop at 1 bar) of 2500 Nl/min
  - max. operating temperature +50 ° C
  - medium: lubricated or lubricated filtered air (if lubrication is used, it must be continuous)
  - mounting screws M4 x 55
  - can be mounted on the wall
  - Installation in desired position
  - Weight 0.8 kg

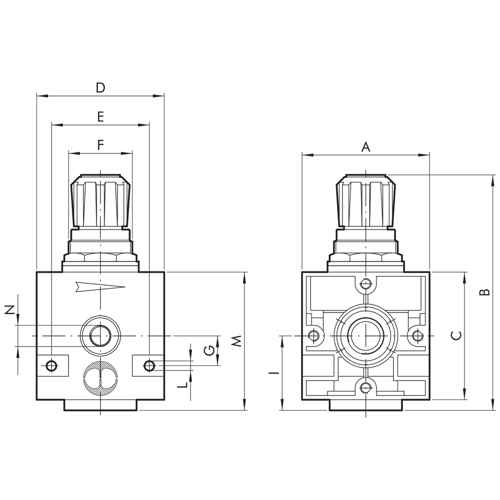

  Dimensions (mm):
  - H 60
  - B 130
  - C 60
  - D 60
  - E 46
  - F 38 x 2
  - G 14
  - 35
  - L M4
  - M 70
  - N (connection for pressure gauge) 1/8 "
