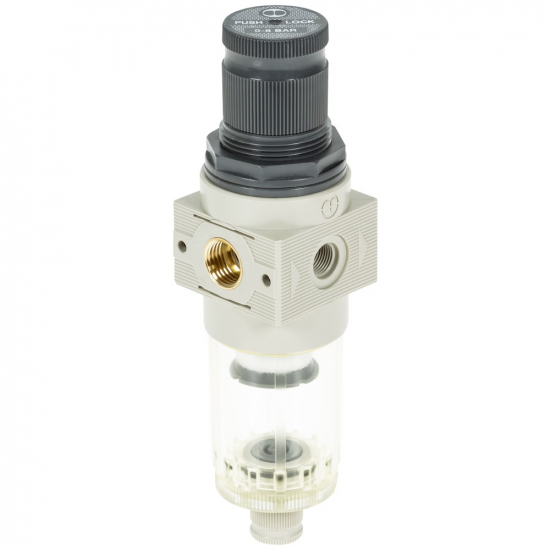

PNEUMATIC FILTERREGULATOR 1/4 0-8BAR BIT

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP5205008

  ManufacturerMETAL WORK

  Characteristics

  - BIT filter regulator
  - filter regulator combines filtration, condensate separation, and pressure regulation in one unit
  - RMSA: condensate drained in depressurized state, or by pressing the valve upward by hand
  - thread G 1/2"
  - connection to pressure gauge G 1/8"
  - pressure range 0 - 8 bar
  - filtration grade 20 micron
  - max. working pressure 18 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 1000 Nl/min
  - max. flow at 6.3 bar (pressure drop 1 bar) 2500 Nl/min
  - max. operating temperature +50 °C
  - tank volume 45 cm³
  - media: compressed air
  - mounting screws M4 x 55
  - mounting position vertical
  - weight 1.0 kg
