Pilot Regulator 1/8 Rflu

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP9041002

  ManufacturerMETAL WORK

  Characteristics

  - RFL series (type U)
  - valve regulates cylinder speed

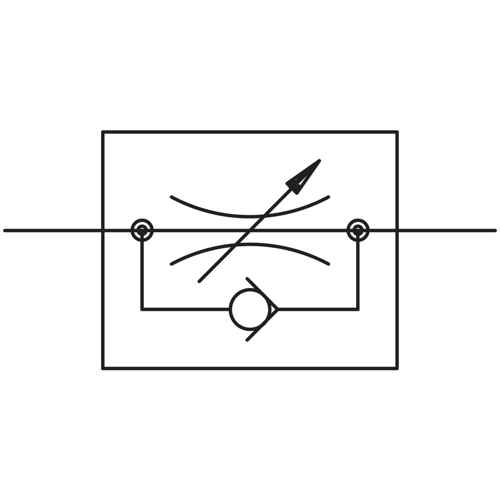

  - valve regulates flow in one direction and allows free flow in the other direction
  - flow opening regulated by an adjusting knob
  - material valve housing aluminum, adjusting screw brass, seals NBR
  - thread G 1/8"
  - max. operating temperature +70 °C
  - max. pressure 10 bar

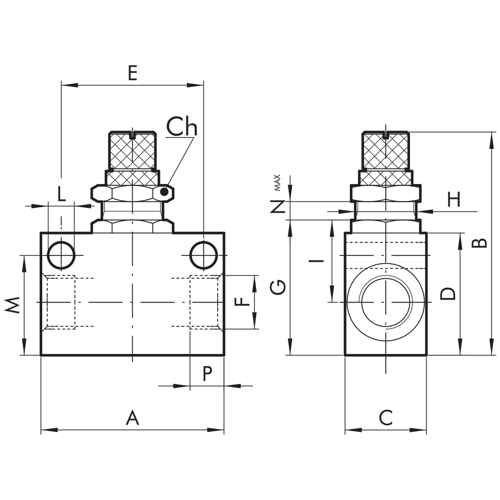

  Dimensions (mm):
  - P 7
  - E 25
  - H M12x1
  - Nmax 5.5
  - A 31
  - B 48
  - C 16
  - G 25
  - I 15
  - D 22
  - M 18.2
  - CH 16
  - L 4.2
