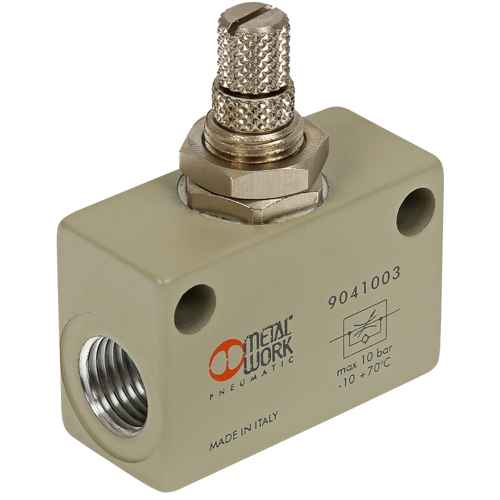

Pilot Regulator 1/4 Rflu

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP9041003

  ManufacturerMETAL WORK

  Characteristics

  - RFL series (type U)
  - valve regulates cylinder speed
  - valve regulates flow in one direction and allows free flow in the other direction
  - flow opening regulated by an adjusting knob
  - material valve housing aluminum, adjusting screw brass, seals NBR
  - thread G 1/4"
  - max. operating temperature +70 °C
  - max. pressure 10 bar

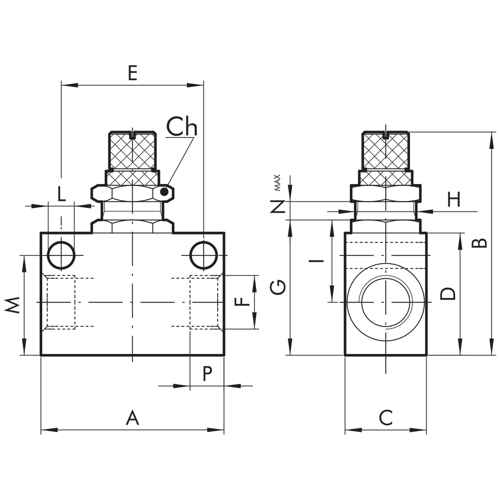

  Dimensions (mm):
  - P 8
  - E 35
  - H M12x1
  - Nmax 5
  - A 45
  - B 53.5
  - C 20
  - G 33
  - I 22
  - D 30
  - M 24.5
  - CH 16
  - L 6.5
