Pilot Regulator 1/2 Rflu

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP9041005

  ManufacturerMETAL WORK

  Characteristics

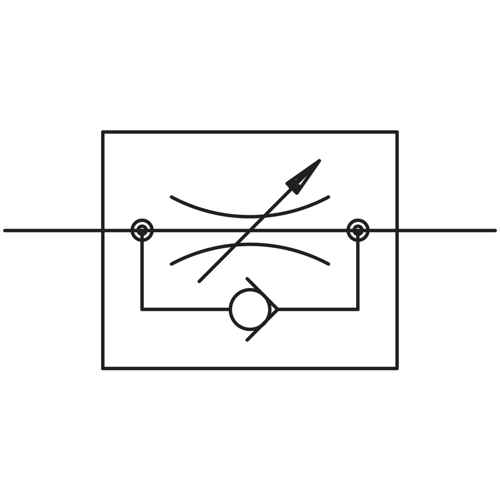

  - RFL series (type U)
  - valve regulates cylinder speed
  - valve regulates flow in one direction and allows free flow in the other direction
  - flow opening regulated by an adjusting knob
  - material valve housing aluminum, adjusting screw brass, seals NBR
  - thread G 1/2"
  - max. operating temperature +70 °C
  - max. pressure 10 bar

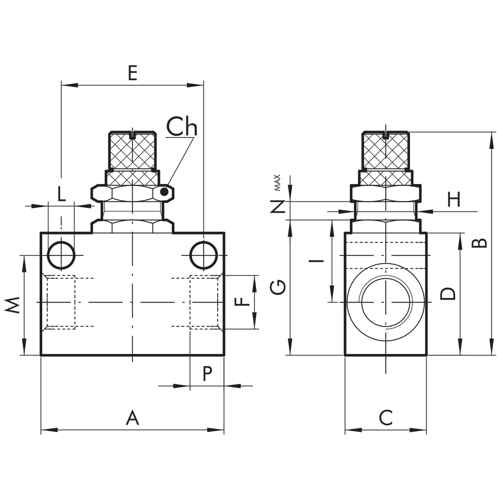

  Dimensions (mm):
  - P 11
  - E 44
  - H M15x1
  - Nmax 7.5
  - A 59
  - B 67
  - C 30
  - G 43.5
  - I 24
  - D 40
  - M 35
  - CH 20
  - L 6.5
