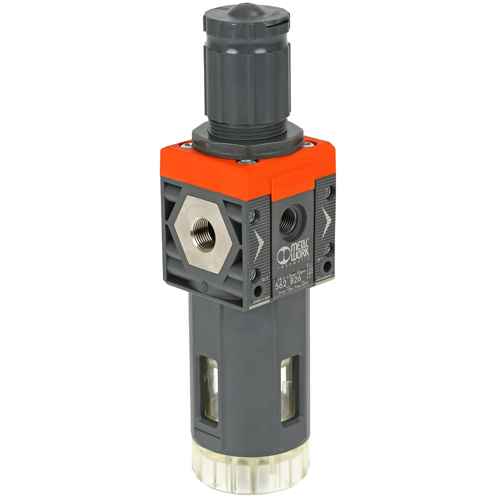

Filterregulator 3/8 Sy2 Fr 20Mic 0-12Bar Synthesis

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP5623B263

  ManufacturerMETAL WORK

  Characteristics

  - Synthesis filter regulator SY2
  - The filter regulator combines all the functions and features of the filter and regulator
  - RMSA: The condensate drain is done automatically by turning and pressing the knob
  - Lockable setting button
  - thread G 3/8 "
  - Connection for pressure gauge or air outlet G 1/4 "
  - The tank capacity is 70 cm³
  - Filtration level of 20 microns (standard ISO8573-1: 4.7.4)
  - max. operating pressure 13 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) at 3200 Nl/min
  - max. flow at a pressure of 6.3 bar (pressure drop at 1 bar) at 5800 Nl/min
  - max. flow (safety valve) at 6.3 bar at 100 Nl/min
  - Flow (venting) at 6.3 bar at 1400 Nl/min
  - Operating temperature -10 ... + 50 ° C
  - medium: compressed air or inert gases
  - Installation upright
  - Mounting screws M5
  - weight 623 g

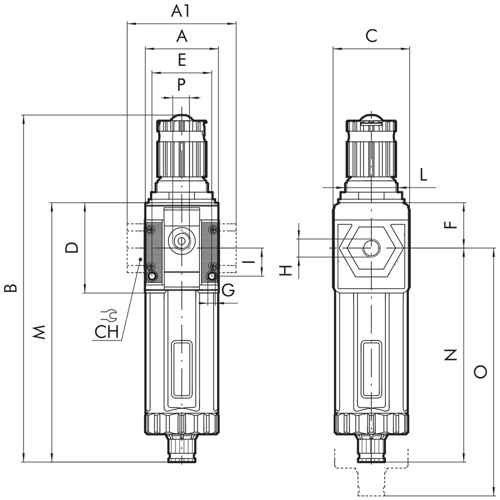

  Dimensions (mm):
  - p. 61
  - B 246
  - C 61
  - D 70.5
  - E 47.5
  - F 38.2
  - G M5
  - 22.5
  - L M38x2
  - M 178
  - N 139.8
  - O 245
  - P (pressure gauge / venting) 1/4 "
