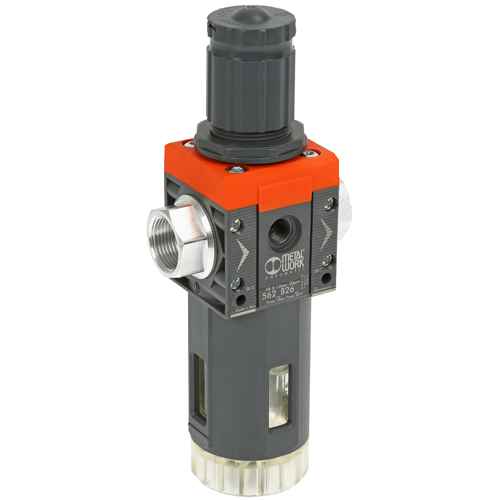

Filterregulator 3/4 Sy2 Fr 20Mic 0-12Bar Synthesis

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP5625B265

  ManufacturerMETAL WORK

  Characteristics

  - SYNTHESES filter SY2
  - combining the filter in the filter, and control the unit all functions and characteristics
  - RMSA: condensation drainage takes place automatically only by pressing and turning the knob
  - lockable knob
  - thread G 3/4"
  - connection of a pressure gauge or exhaust for G 1/4"
  - volume of the container 70 cm³
  - filtration rate of 20 microns (standard ISO8573-1: 4.7.4)
  - max. working pressure 13 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 5200 Nl/min
  - max. flow at a pressure of 6.3 bar (pressure drop 1 bar) 7400 Nl/min
  - max. flow (safety valve) at 6.3 bar at 100 Nl/min
  - flow (exhaust) at 6.3 bar at 1400 Nl/min
  - Operating temperature -10 ... + 50 ° C
  - medium: air or inert gas
  - installation in an upright position
  - the fastening screws M5
  - weight 592 g

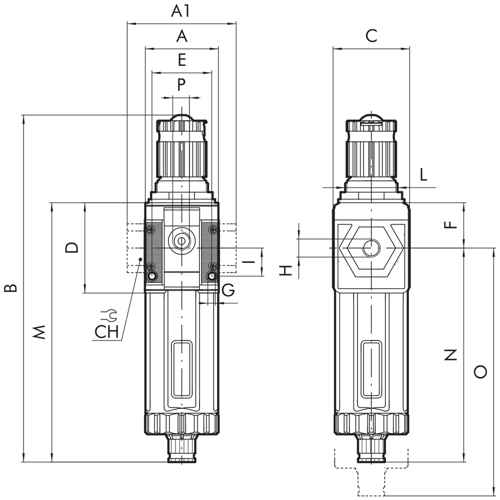

  Dimensions (in mm):
  - A 61
  - A 1 95
  - B 246
  - C 61
  - CH 32
  - D 70.5
  - E 47.5
  - 38.2 F
  - G M5
  - I 22.5
  - M38x2 L
  - M 178
  - 139.8 n
  - O 245
  - P (manometer / exhaust) 1/4 "
