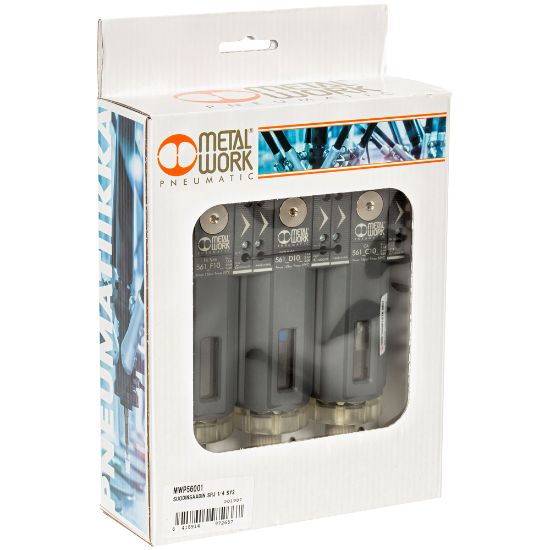

Filterregulator 1/4 Sy2 Fr-D-Ac Breathing

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP56001

  ManufacturerMETAL WORK

  Characteristics

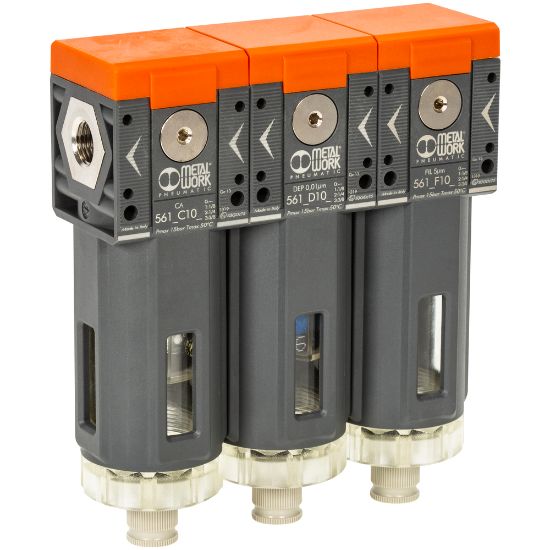

  Syntesi filter regulator SY1:
  - filter regulator combines filtration, condensate separation, and pressure regulation in a single unit
  - RMSA: the condensate is drained in a pressureless state, or by pressing the valve upwards manually
  - lockable knob
  - thread G 1/4"
  - pressure gauge/vent G 1/8"
  - tank volume 30 cm³
  - filtration grade 20 micron (standard ISO8573-1: 4.7.4)
  - max. working pressure 15 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 800 Nl/min
  - max. flow at 6.3 bar (pressure drop 1 bar) 2000 Nl/min
  - max. flow (safety valve) at 6.3 bar 70 Nl/min
  - flow (vent) at 6.3 bar 500 Nl/min
  - operating temperature -10...+50 °C
  - media: compressed air or noble gas
  - mounting position vertical
  - mounting screws M4
  - weight 239 g

  Syntesi dehydrator SY1:
  - effectively separates liquid and solid particles from compressed air
  - RMSA: the condensate is drained in a pressureless state, or by pressing the valve upwards manually
  - thread G 1/4"
  - vent thread G 1/8"
  - tank volume 15 cm³
  - filtration grade 0.01 (standard ISO8573-1: 1.7.2)
  - max. working pressure 15 bar
  - max. flow at regulation 6.3 bar 460 Nl/min
  - flow (vent) at 6.3 bar 500 Nl/min
  - operating temperature -10...+50 °C
  - mounting position vertical
  - mounting screws M4
  - weight 189 g

  Syntesi activated carbon filter SY1:
  - a filtration system with an activated carbon filter achieves the highest level of purification
  - filters out all impurities: oils, solvents, hydrocarbons, and unpleasant odor
  - RMSA: the condensate is drained in a pressureless state, or by pressing the valve upwards manually
  - filter cartridge life 4000 h
  - thread G 1/4"
  - connection to pressure gauge or vent G 1/8"
  - filtration grade/residual oil at 20°C 0.003 mg/m³ (standard ISO8573-1: 1.7.1)
  - max. working pressure 15 bar
  - max. flow at regulation 6.3 bar 350 Nl/min
  - flow (vent) at 6.3 bar 500 Nl/min
  - operating temperature -10...+50 °C
  - installation in any position
  - mounting screws M4
  - weight 350 g
