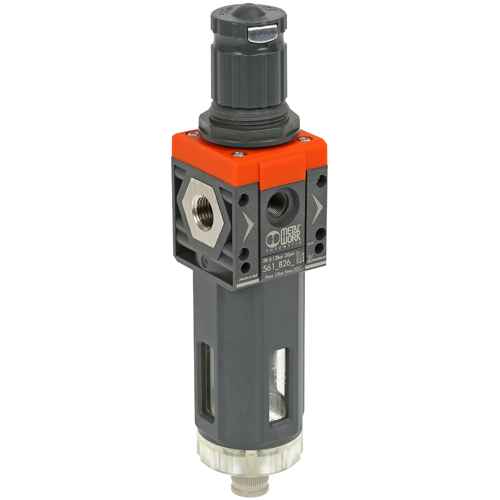

Filterregulator 1/4 Sy1 Fr 20Mic 0-12Bar Synthesis

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP5612B262

  ManufacturerMETAL WORK

  Characteristics

  - Syntes filter control unit SY1

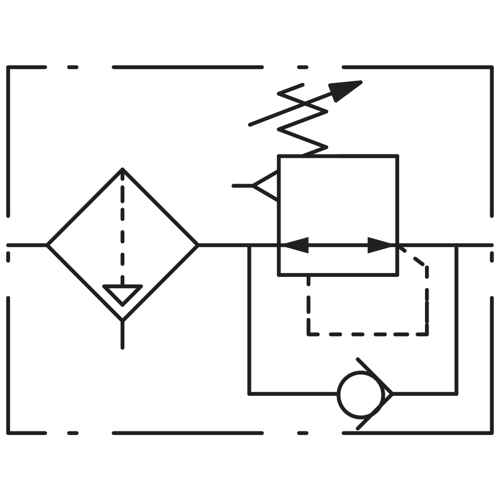

  - The filter control unit combines all the functions and features of the filter and regulator
  - RMSA: The condensate drain is done automatically by turning and pressing the knob
  - Lockable setting button
  - thread G 1/4 "
  - pressure gauge / venting G 1/8 "
  - The tank volume is 30 cm³
  - Filtration level of 20 microns (standard ISO8573-1: 4.7.4)
  - max. operating pressure 15 bar
  - max. flow at a pressure of 6.3 bar (pressure drop 0.5 bar) at 800 Nl/min
  - max. flow at a pressure of 6.3 bar (pressure drop at 1 bar) at 2000 Nl/min
  - max. flow (safety valve) at 6.3 bar at 70 Nl/min
  - flow (venting) at 6.3 bar at 500 Nl/min
  - Operating temperature -10 ... + 50 ° C
  - medium: compressed air or inert gases
  - Installation upright
  - mounting screws M4
  - weight 239 g

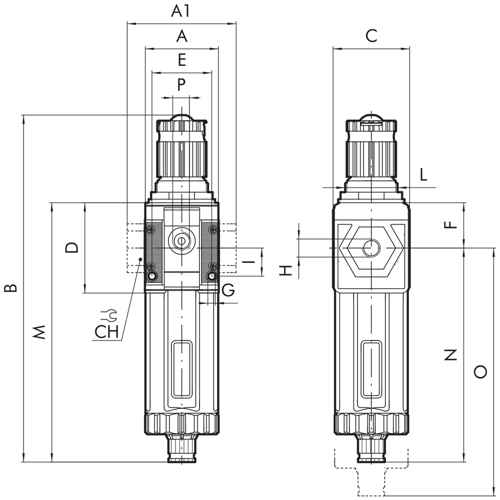

  Dimensions (mm):
  - Chapter 42
  - B 198
  - C 44
  - D 51.5
  - E 33.5
  - F 25.8
  - G M4
  - and 16
  - L M30x1.5
  - M 148
  - N 122.2
  - O 202
  - P (pressure gauge / venting) 1/8 "
