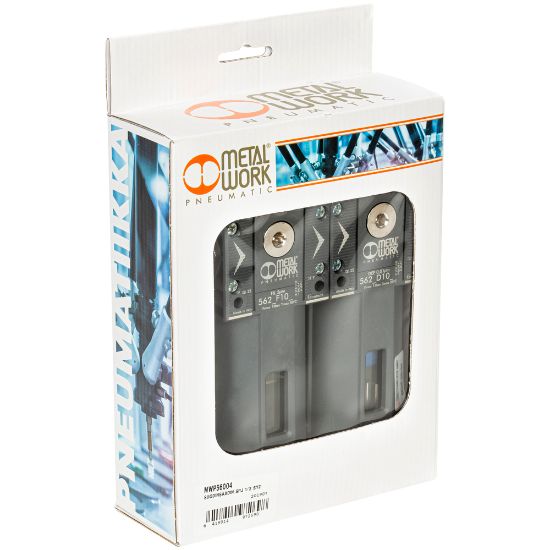

Filterregulator 1/2 Sy2 Fr-D Painting

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP56004

  ManufacturerMETAL WORK

  Characteristics

  Syntesi filter regulator SY2:
  - filter regulator combines filtration, condensate separation, and pressure regulation in a single unit
  - RMSA: condensate is drained at pressureless state, or by pushing the valve upward manually
  - lockable knob
  - thread G 1/2"
  - connection to pressure gauge or venting G 1/4"
  - tank volume 70 cm³
  - filtration grade 20 micron (standard ISO8573-1: 4.7.4)
  - max. operating pressure 13 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 4300 Nl/min
  - max. flow at 6.3 bar (pressure drop 1 bar) 7200 Nl/min
  - max. flow (safety valve) at 6.3 bar 100 Nl/min
  - flow (venting) at 6.3 bar 1400 Nl/min
  - operating temperature -10...+50 °C
  - media: compressed air or noble gases
  - mounting position vertical
  - fastening screws M5
  - weight 596 g

  Syntesi purifier SY2:
  - effectively separates liquid and solid particles from compressed air
  - RMSA: condensate is drained at pressureless state, or by pushing the valve upward manually
  - thread G 1/2"
  - thread venting G 1/4"
  - tank volume 40 cm³
  - filtration grade 0.01 (standard ISO8573-1: 1.7.2)
  - max. operating pressure 13 bar
  - max. flow control at 6.3 bar 620 Nl/min
  - flow (venting) at 6.3 bar 1500 Nl/min
  - operating temperature -10...+50 °C
  - mounting position vertical
  - fastening screws M5
  - weight 456 g
