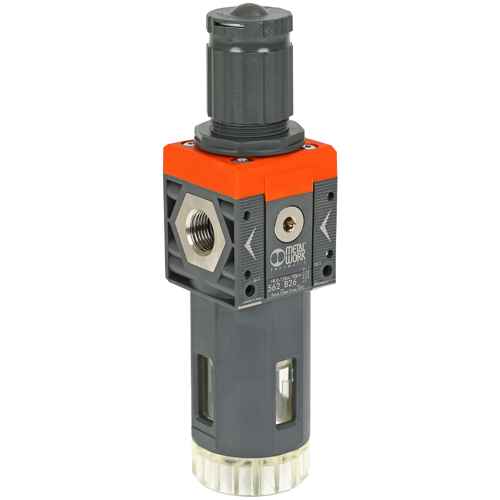

Filterregulator 1/2 Sy2 Fr 20Mic 0-12Bar Synthesis

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP5624B264

  ManufacturerMETAL WORK

  Characteristics

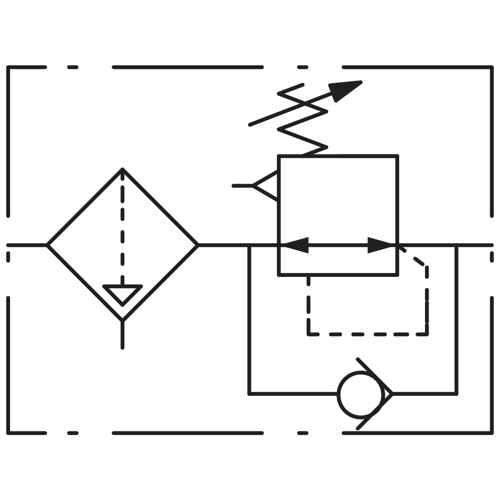

  - Synthesis of filter regulator SY2
  - The filter control unit combines all functions and characteristics of the filter and regulator
  - RMSA: Condensate drainage is done automatically by turning and pressing the knob
  - Lockable adjustment knob
  - Thread G 1/2"
  - Connection for pressure gauge or air outlet G 1/4"
  - Tank capacity is 70 cm³
  - Filtration grade of 20 microns (standard ISO8573-1: 4.7.4)
  - max. working pressure 13 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) at 4300 Nl/min
  - max. flow at a pressure of 6.3 bar (pressure drop at 1 bar) 7200 Nl/min
  - max. flow (safety valve) at 6.3 bar at 100 Nl/min
  - Flow (venting) at 6.3 bar at 1400 Nl/min
  - Operating temperature -10 ... + 50 ° C
  - medium: compressed air or inert gases
  - Mounting vertically
  - Fastening screws M5
  - weight 596 g

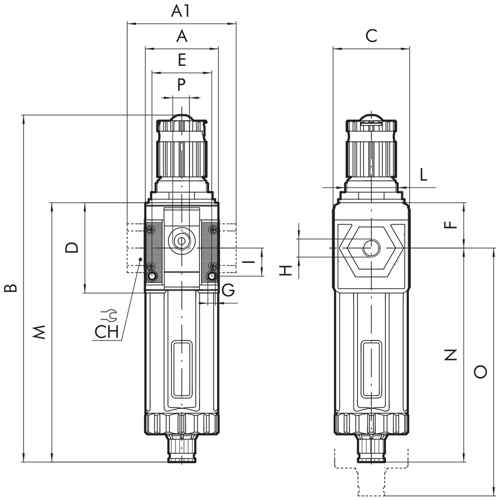

  Dimensions (mm):
  - A 61
  - B 246
  - C 61
  - D 70.5
  - E 47.5
  F 38.2
  - G M5
  - 22.5
  - L M38x2
  - M 178
  - N 139.8
  - O 245
  - P (pressure gauge / venting) 1/4 "
