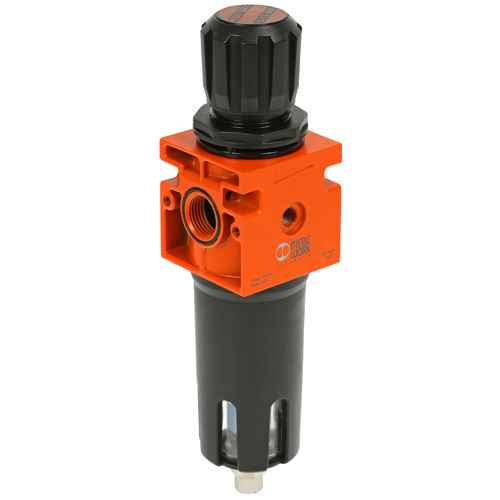

Filter Regulator 3/8 Fr Sac 20Mic 0-12Bar New Deal

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP1425514

  ManufacturerMETAL WORK

  Characteristics

  - New Deal filter regulator
  - The filter regulator combines all the functions and features of the filter and regulator
  - SAC: Automatic condensate drainage
  - excellent performance
  - relief valve
  - thread G 1/2 "
  - Connection for pressure gauge G 1/8 "
  - Adjustment range 0 to 12 bar
  - A filtration rate of 20 microns
  - max. working pressure 18 bar
  - max. flow rate at 6.3 bar (pressure drop 0.5 bar) 1000 Nl/min
  - max. flow rate at a pressure of 6.3 bar (pressure drop at 1 bar) of 2500 Nl/min
  - max. operating temperature +50 ° C
  - Tank capacity is 45 cm³
  - medium: compressed air
  - fixing screws M4 x 55
  - Vertical mounting
  - weight 1.0 kg

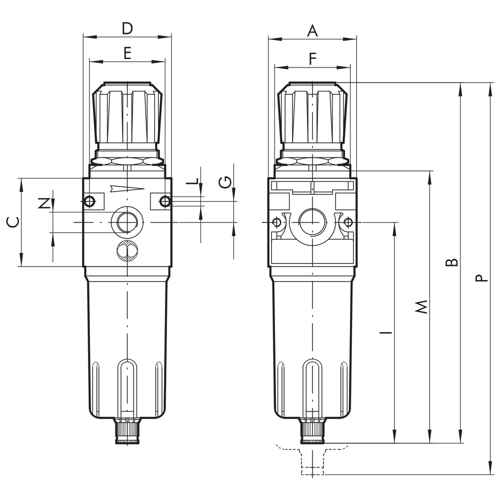

  Dimensions (mm):
  - H 60
  - B 249
  - C 60
  - D 60
  - E 52
  - F 38 x 2
  - G 14
  - And 150
  - L M4
  - M 189
  - N (connection for pressure gauge) 1/8 "
  - P 299
