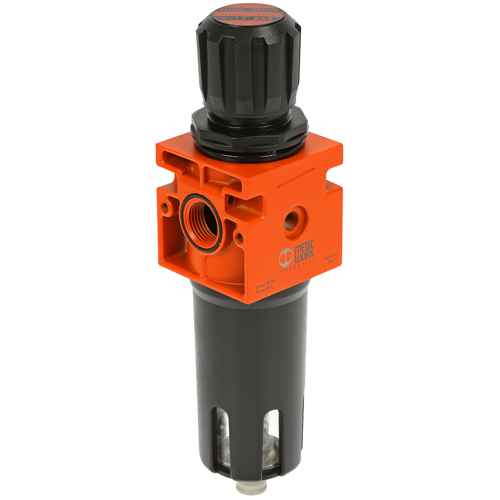

Filter Regulator 3/8 Fr Rmsa 4Mic 0-12Bar New Deal

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP1425053

  ManufacturerMETAL WORK

  Characteristics

  - New Deal filter regulator
  - The filter control unit combines all of the functions and features of the filter and regulator
  - RMSA: The automatic condensate drain is operated by turning and pressing the knob
  - excellent performance
  - relief valve
  - thread G 1/2 "
  - Connection for pressure gauge G 1/8 "
  - Adjustment range 0 to 12 bar
  - A filtration rate of 4 microns
  - max. operating pressure 18 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 1000 Nl / min
  - max. flow at a pressure of 6.3 bar (pressure drop at 1 bar) of 2500 Nl / min
  - max. operating temperature +50 ° C
  - Tank capacity is 45 cm³
  - medium: compressed air
  - fixing screws M4 x 55
  - Installation upright
  - weight 1.0 kg

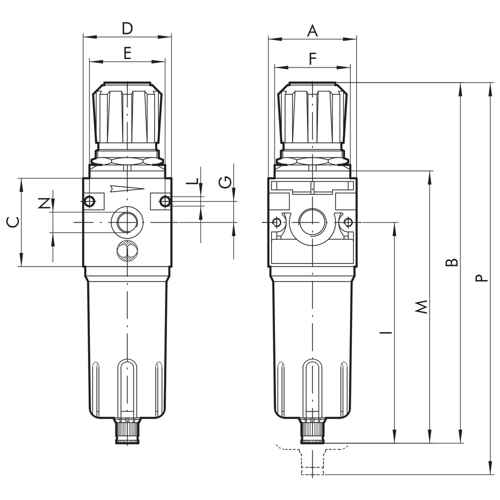

  Dimensions (mm):
  - A 60
  - B 245
  - C 60
  - D 60
  - E 52
  - F 38 x 2
  - G 14
  - And 150
  - L M4
  - M 185
  - N (connection for pressure gauge) 1/8 "
  - P 295
