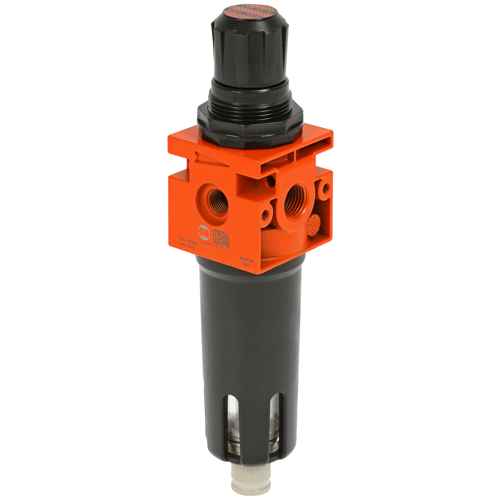

Filter Regulator 1/4 Fr Rmsa 20Mic 0-12Bar New Deal

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDMWP1225054

  ManufacturerMETAL WORK

  Characteristics

  - new affair filter regulator
  - the filter regulator combines the functions and features of the filter and the control unit
  - RMSA: condensate drainage occurs automatically just by pressing and turning the knob
  - excellent performance
  - safety valve
  - thread G 1/4 "
  - connection for pressure gauge G 1/8"
  - adjustment range 0 - 12 bar
  - filtration speed of 20 microns
  - max. working pressure 18 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 260 Nl / min
  - max. flow at 6.3 bar pressure (pressure drop 1 bar) 700 Nl / min
  - max. operating temperature 50 ° C
  - container volume 10 cm ^
  - medium: air
  - screws M4 x 40
  - installation in a vertical position
  - weight 0.5 kg

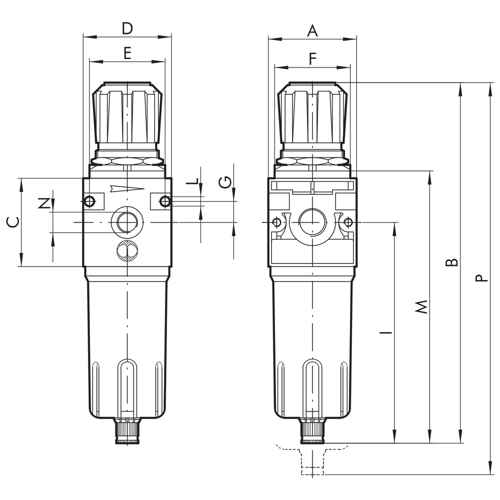

  Dimensions (mm)
  - A 42
  - B 190
  - C 42
  - D 42
  - E 36
  - F 30 x 1.5
  - G 10
  - I 121
  - L M4
  - 145 M
  - N (connection for pressure gauge) 1/8 "
  - P 233
