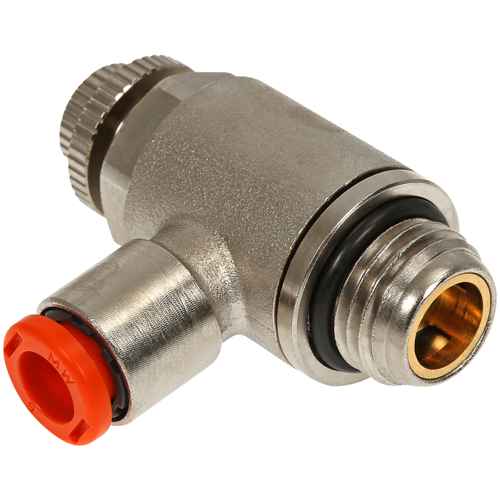

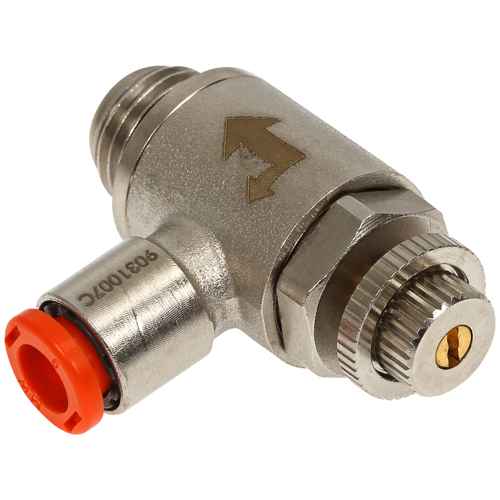

Air valve regulator 8X1/8 Mrf For Cylinder

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMRFC0802

  ManufacturerMETAL WORK

  Characteristics

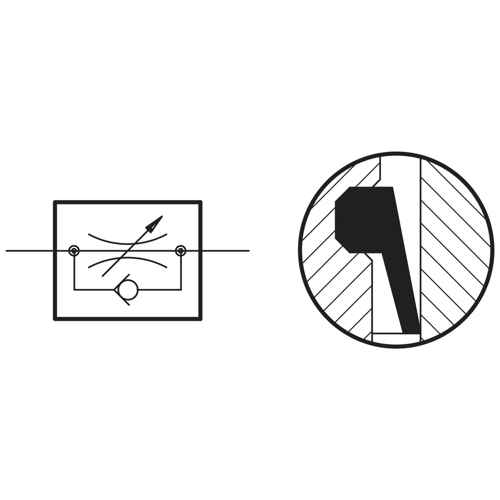

  - Compact N series, throttle check valve for mounting in cylinder port
  - regulation with screwdriver and/or knob, locking of set value with lock nut
  - thread G 1/8"
  - pipe Ø 8 mm
  - max. working pressure 10 bar
  - max. flow regulation at 6.3 bar 400 Nl/min
  - max. flow (fully open) regulation at 6.3 bar (with closed control screw) 390 Nl/min
  - max. flow (fully open) regulation at 6.3 bar (with open control screw) 650 Nl/min
  - operating temperature -10...+70 °C
  - media: lubricated or non-lubricated filtered compressed air

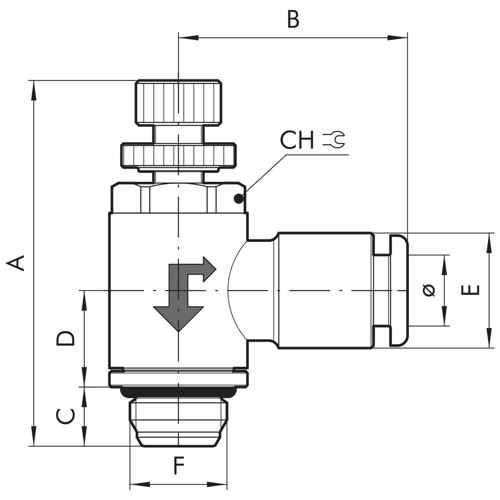

  Dimensions (mm):
  - F 1/8"
  - Ø 8
  - CH 12
  - A min. 33.5
  - A max. 37.6
  - B 24.8
  - C 6
  - D 9.8
  - E 13.8
