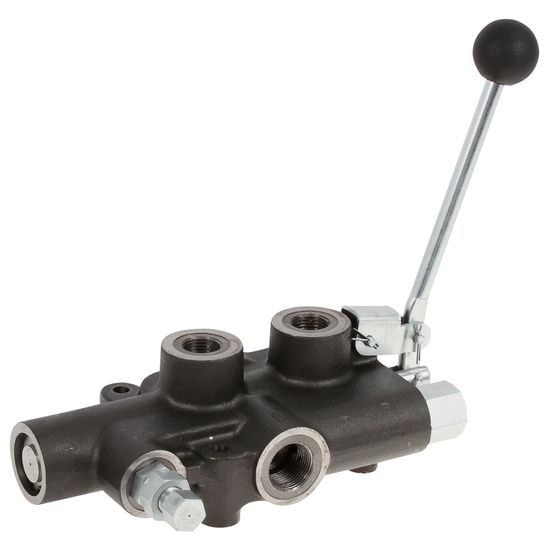

Wood Processor valve - max. 80 l/min

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDFM990095

  Manufacturer

  Characteristics

  Cylinder connection BSP 1/2"
  Pressure and return connection BSP 3/4"

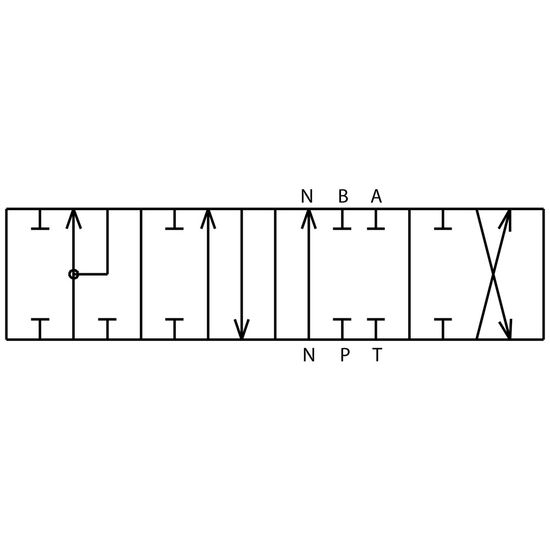

  The pressure movement cannot be locked in the active position; the user must pull the lever continuously while the machine is in use. (Deadman's grip)
  The return movement can be locked, and the valve spindle returns to the center position.
  When mounted with normal return movement, the oil is directed back to the tank.

  For the working movement, there is also a fast option where the return oil is directed back to the cylinder, accelerating the working movement.

  Technical specification:
  - flow max. 80 l/min.
  - cylinder connection BSP 1/2"
  - pressure and return connection BSP 3/4"
  - safety valve max. 250 bar
