Check valves 3/8" - max. 45 l/min

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDH80600

  Manufacturer

  CharacteristicsType: VU
  Max. pressure: 350 bar

  Check valve that prevents flow in one direction and allows flow freely in the other direction.

  Technical specifications:
  - type: VU
  - material: galvanized steel
  - connection VC: G 3/8"
  - max flow: 45 l/min
  - max pressure: 350 bar
  - opening pressure: 0.5 bar

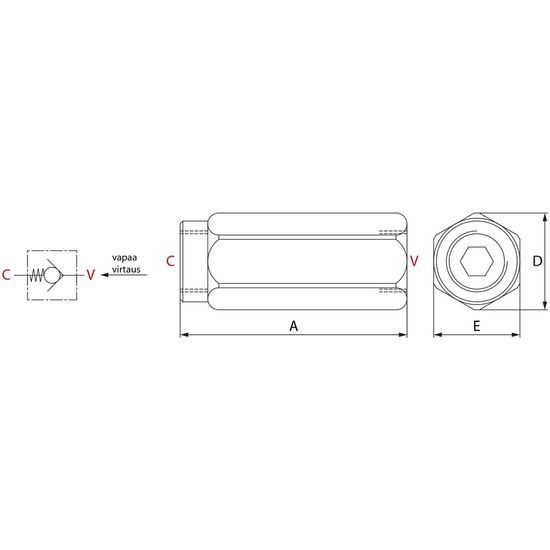

  Refer to the attached image for specific dimensions:
  - A: 68 mm
  - D: 26.5 mm
  - E: 24 mm
