Throttle Valve 3/8" - 30 l/min

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDH80586

  Manufacturer

  CharacteristicsType: VRFB 90°
  Max. pressure: 350 bar

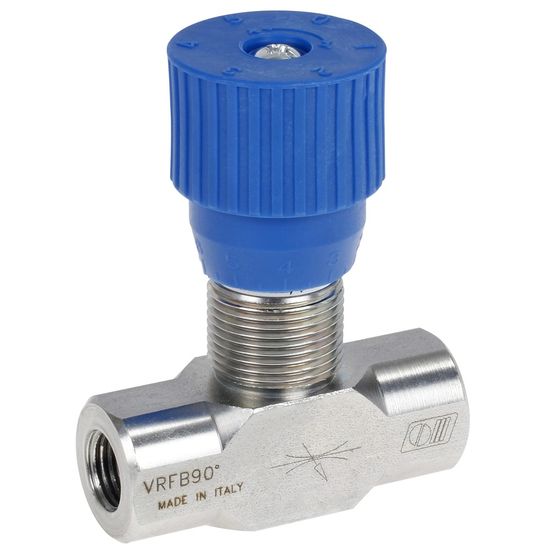

  Valve that regulates flow in both directions.
  The flow opening is regulated with an adjustment knob that can also be locked.

  Technical specification:
  - type: VRFB 90°
  - material galvanized steel
  - connection V C: G 3/8"
  - max. flow: 30 l/min
  - max. pressure: 350 bar

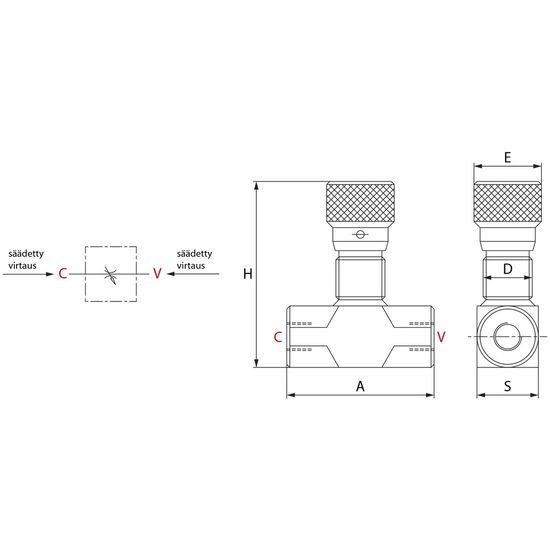

  See attached image for specific measurements:
  - A: 61 mm
  - D: M22x1.5 mm
  - E: 32 mm
  - H: 82 mm
  - S: 25 mm
