Throttle Valve 3/4" - max. 110 l/min
€75
Incl. VAT

- Info
-
Stock statusProduct IDH80575ManufacturerCharacteristicsType: VRB
Max pressure: 250 barValve that regulates the flow in both directions.
Turn the valve to adjust the flow and lock it with a nut.
Technical specifications:
- type: VRB
- material galvanized steel
- connection V C: G 3/4"
- max. flow: 110 l/min
- max. pressure: 250 bar

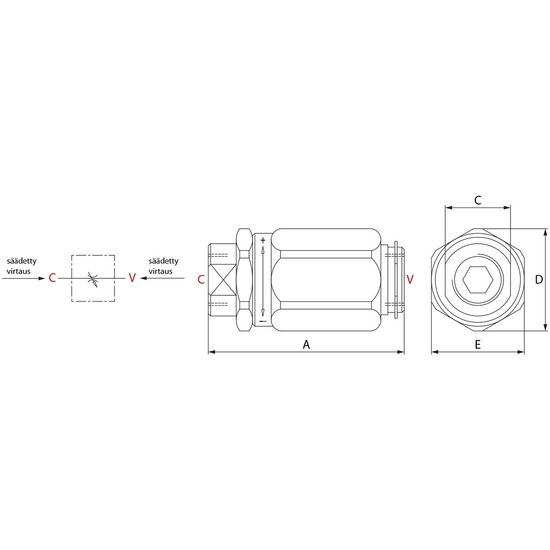

Refer to the attached image for specific dimensions:
- A: 95 mm
- C: 32 mm
- D: 51 mm
- E: 46 mm - Product groups
-
