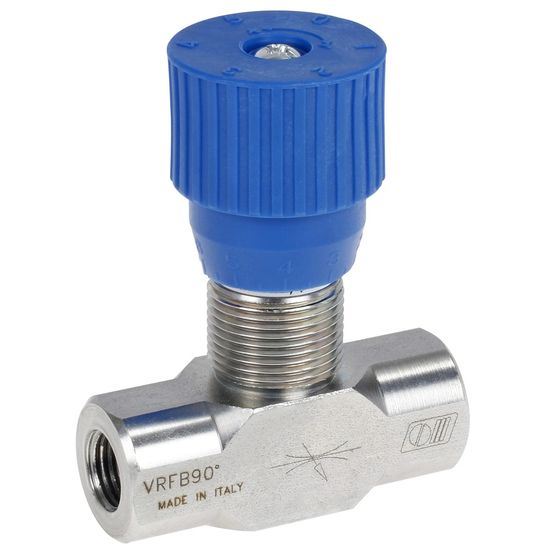

Throttle Valve 1" - max. 110 l/min

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDH80577

  Manufacturer

  CharacteristicsType: VRFB 90°
  Max pressure: 250 bar

  Valve that regulates the flow in both directions.
  Flow opening is regulated with an adjuster knob that can also be locked.

  Technical specifications:
  - type: VRFB 90°
  - material galvanized steel
  - connection V C: G 1"
  - max. flow: 110 l/min
  - max. pressure: 250 bar

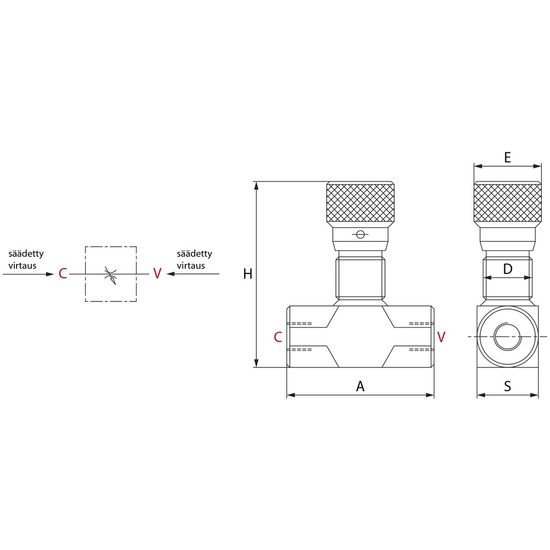

  Refer to the attached image for specific dimensions:
  - A: 90 mm
  - D: M35x1.5 mm
  - E: 42 mm
  - H: 129 mm
  - S: 40 mm
