Throttle Check Valve 1" - max. 110 l/min

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDH80576

  Manufacturer

  CharacteristicsType: VRFU 90°
  Max pressure: 250 bar

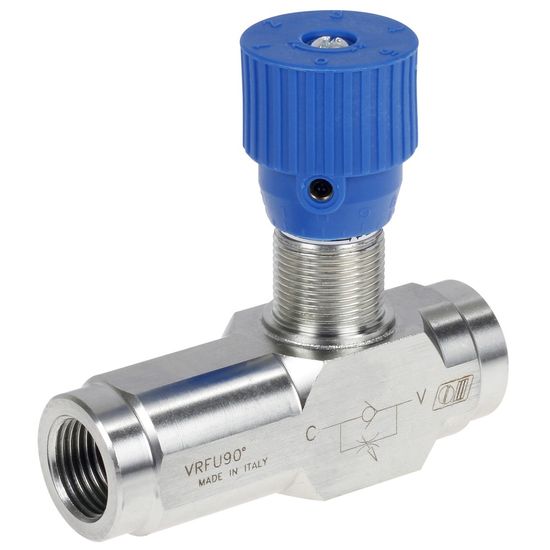

  Valve that regulates the flow in one direction and allows free flow in the other direction.
  Flow opening is regulated with an adjuster knob that can also be locked.

  Technical specifications:
  - type: VRFU 90°
  - material galvanized steel
  - connection V C: G 1"
  - max. flow: 110 l/min
  - max. pressure: 250 bar
  - opening pressure: 0.5 bar

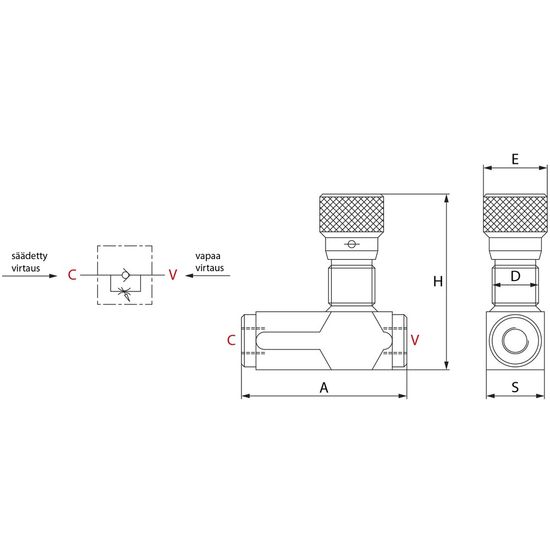

  Refer to the attached image for specific dimensions:
  - A: 135 mm
  - D: M35x1.5 mm
  - E: 42 mm
  - H: 126 mm
  - S: 40 mm
