Throttle Check Valve 1/2" - max. 70 l/min
€76
Incl. VAT

- Info
-
Stock statusProduct IDH80560ManufacturerCharacteristicsType: VRF
Max. pressure: 300 barValve that regulates the flow in one direction and allows free flow in the other direction.
Turn the valve to adjust the flow and lock it with a nut.
Technical specifications:
- type: VRF
- material galvanized steel
- connection V C: G 1/2"
- max. flow: 70 l/min
- max. pressure: 300 bar
- opening pressure: 0.5 bar

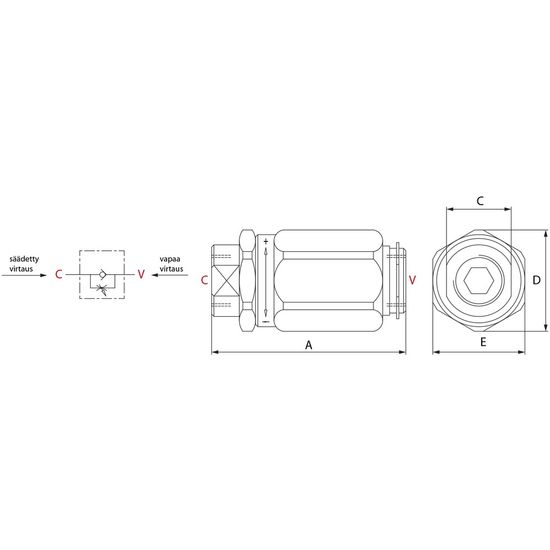

Refer to the attached image for specific dimensions:
- A: 80 mm
- C: 27 mm
- D: 42 mm
- E: 38 mm - Product groups
-
