Solenoid Directional Valve 3/8" - max. 50 l/min

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDAMV501E

  Manufacturer

  CharacteristicsWith emergency operation
  2x double acting

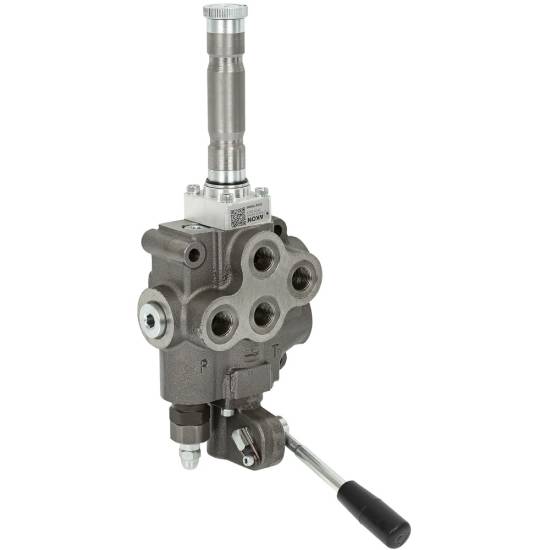

  Electrically controlled directional control valve with adjustable safety valve. The valve comes with a lever.
  The valve package is suitable for, among others, sweepers, agricultural machinery, hydraulic presses, cranes, concrete pumps, and front loaders.

  Technical specifications:
  - load-holding valve
  - material: housing made of cast iron, sections made of chrome-plated carbon steel, sealing made of NBR
  - 1 section
  - function 2x double-acting
  - series connection possible with item AMV50-CO (1/2")
  - max. flow 50 l/min
  - max. operating pressure 350 bar
  - max. return line pressure 30 bar
  - operating temperature -40 to +60 ° C

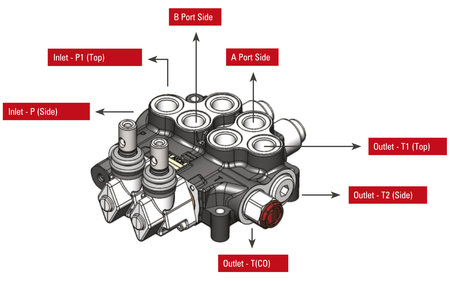

  - P-port G 1/2"
  - A/B-port G 3/8"
  - T-port G 1/2"

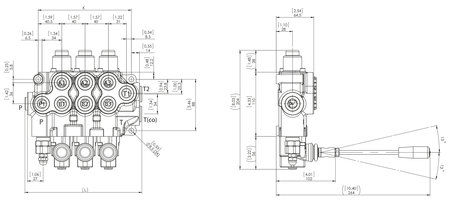

  - dimensions K 80 mm
  - dimensions L 121 mm
  - weight 3.5 kg

  Note! Does not include solenoids. Choose between 12 V or 24 V solenoids.
