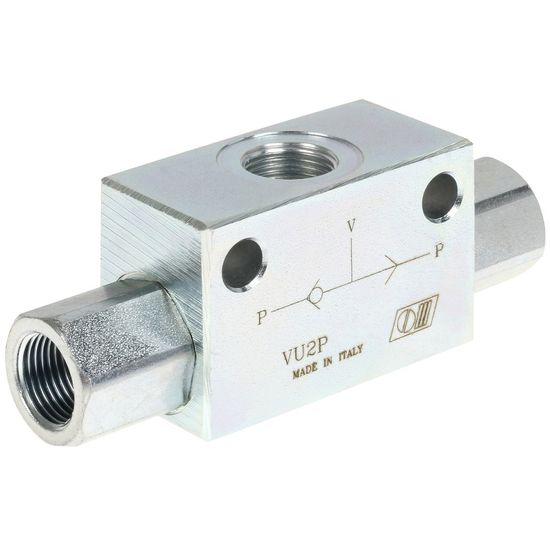

Shuttle valve 1/2" - max. 70 l/min

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDH80670

  Manufacturer

  CharacteristicsType: VU2P
  Max. pressure: 450 bar

  The shuttle valve controls the flow of oil from two different channels to a common channel.
  The higher pressure controls the ball inside the valve to block the channel with lower pressure and release the higher pressure through the valve.

  Technical specifications:
  - type: VU2P
  - material: galvanized steel
  - BunaN seal
  - connection UP: G 1/2"
  - max flow: 70 l/min
  - max pressure: 450 bar

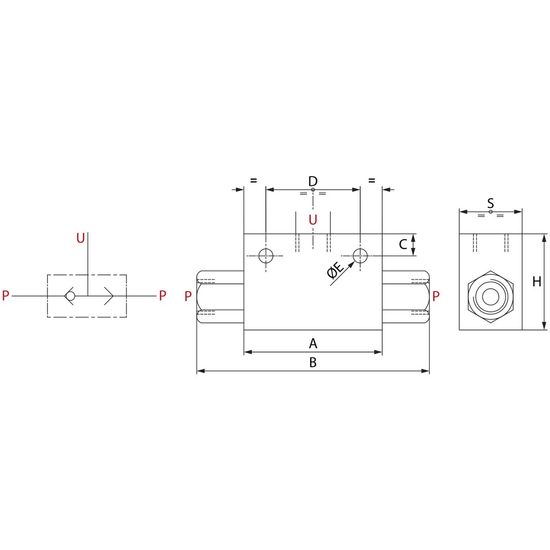

  Refer to the attached image for specific dimensions:
  - A: 60 mm
  - B: 104 mm
  - C: 12 mm
  - D: 44 mm
  - E: 8.5 mm
  - H: 50 mm
  - S: 30 mm
