Selector valve 6/2, 1/2" 24V

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDFM2513

  ManufacturerAGRILIFE

  CharacteristicsMax. flow 70 l/min

  Electric 6/2 valve with the possibility to control more functions with the same directional valve.
  Activate specific function by toggling the solenoid valve.

  Technical specification:
  - voltage: 24 V
  - connections: 1/2" BSP
  - max. flow: 70 l/min
  - max. pressure: 310 bar

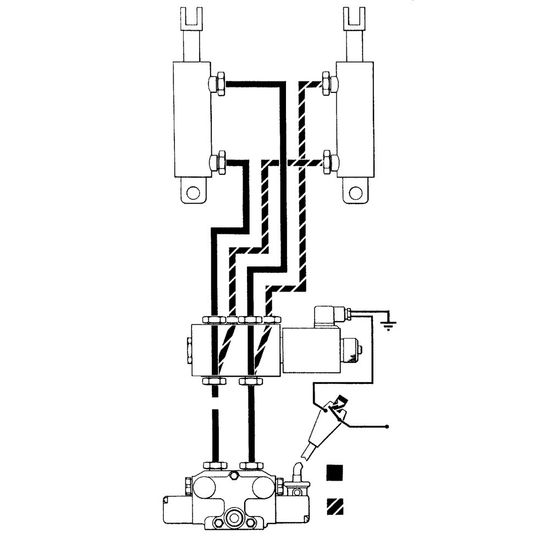

  - for hydraulic and electrical connection, see image

  Spare parts / Accessories:
  - solenoid spare part FM2523
  - suitable coupling FM2524, type DIN 93650, ISO 4400
