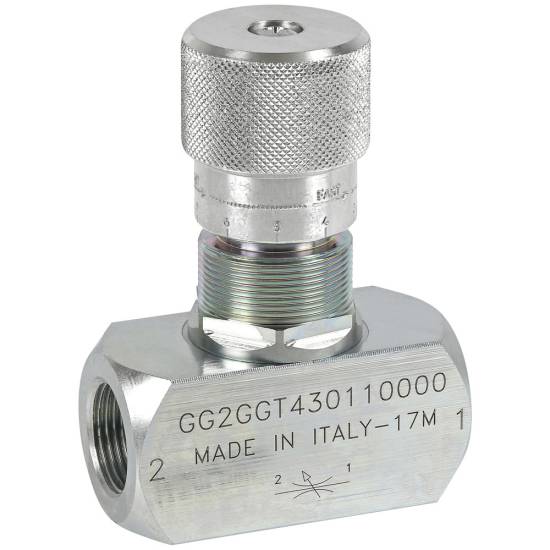

Restrictor Valve 3/4" - max. 80 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHBD12

  ManufacturerGEMELS

  CharacteristicsType: BD
  Max. pressure: 350 bar

  Valve that regulates the flow in both directions.
  The flow opening is adjusted with an adjustment wheel that can also be locked.

  Technical specifications:
  - type: BD
  - DIN ISO 228 BSP
  - material: carbon steel
  - hose: DN20
  - connection: G 3/4"
  - max. flow: 80 l/min
  - max. pressure: 350 bar
  - weight: 1.1 kg

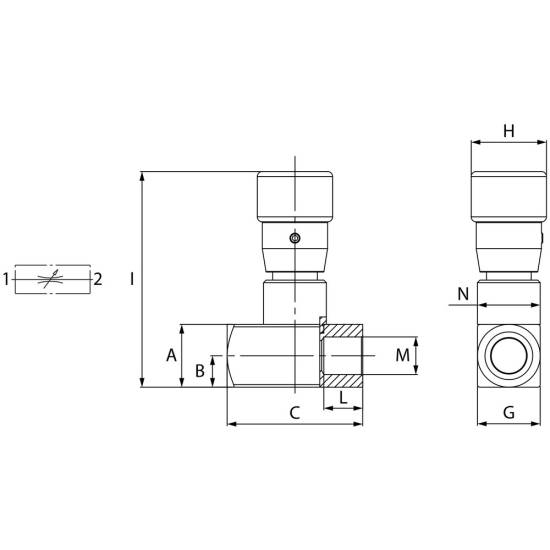

  Refer to the attached image for specific dimensions:
  - A: 40 mm
  - B: 20 mm
  - C: 81 mm
  - G: 40 mm
  - ØH: 42 mm
  - I: 110 mm
  - L: 21 mm
  - ØM: G 3/4"
  - ØN: M 35x1.5mm
