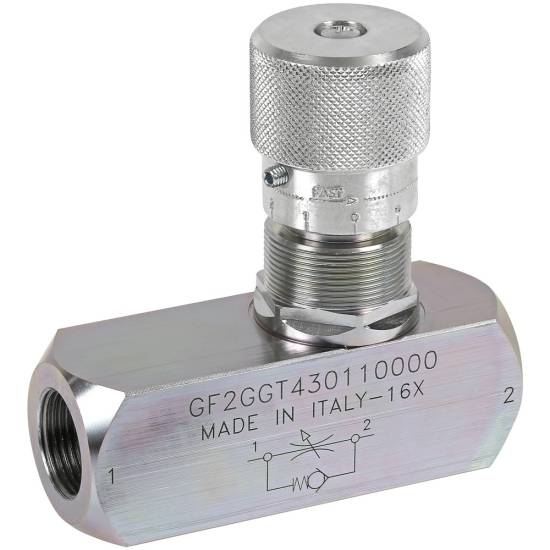

Restrictor valve 3/4" - max. 80 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHRF12

  ManufacturerGEMELS

  CharacteristicsType: RF
  Max. pressure: 350 bar

  Valve that regulates flow in one direction and allows free flow in the other direction.
  The flow opening is controlled by an adjustment knob that can also be locked.

  Technical specification:
  - type: RF
  - DIN ISO 228 BSP
  - material carbon steel
  - hose: DN20
  - connection: G 3/4"
  - max. flow: 80 l/min
  - max. pressure: 350 bar
  - weight: 1.5 kg

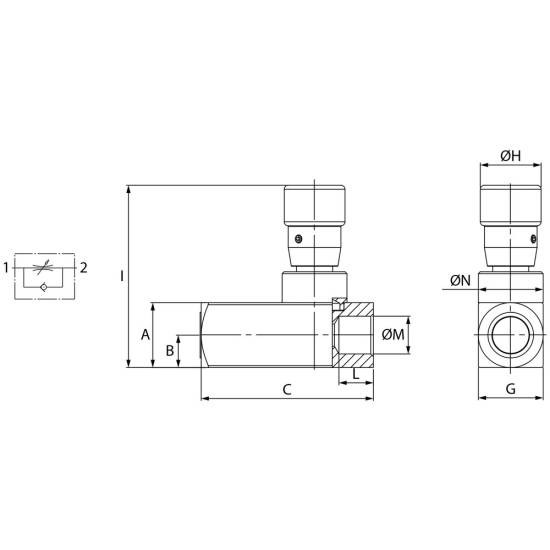

  Refer to the attached image for specific measurements:
  - A: 40 mm
  - B: 20 mm
  - C: 112.5 mm
  - G: 40 mm
  - ØH: 42 mm
  - I: 110 mm
  - L: 21 mm
  - ØM: G 3/4"
  - ØN: M 25x1.5 mm
