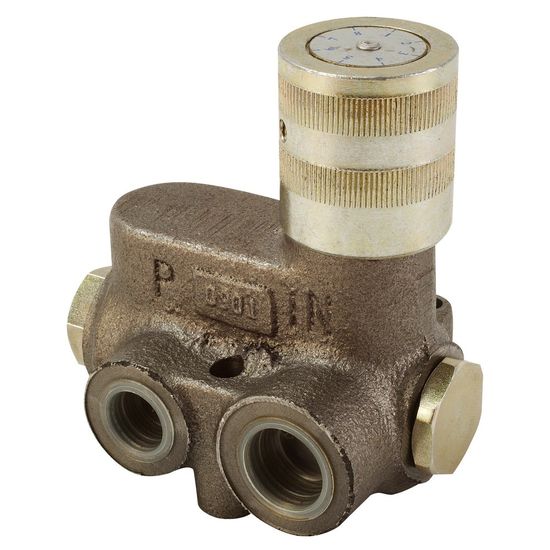

Priority valve - max. 70 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM030322

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: RF70P G
  Max pressure: 250 bar

  Flow control valve RF 40P or RF 70P is designed to adjust or split the flow of the pump to two targets
  so that the primary target receives the set flow and any excess flow is directed to the secondary target or to the tank.
  The flow is adjusted by an adjustment knob on the valve's top side.

  Note that improper use of the flow control valve may heat up the oil.
  This can occur, for example, if a small portion of high flow is directed to the primary target under high pressure, and excess flow is directed to the tank.

  Technical specification:
  - type: RF70P G
  - max. flow: 70 l/min
  - max. pressure: 250 bar
  - G input connection: 3/4" R
  - H working connection: 1/2" R
  - I output connection: 3/4" R

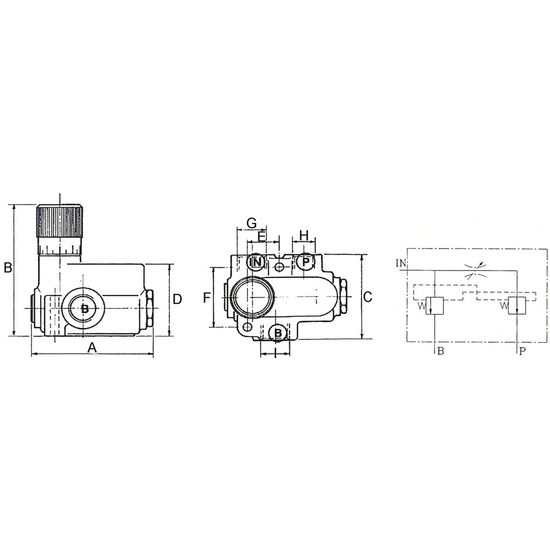

  See attached imagefor specific dimensions:
  - A: 106 mm
  - B: 101 mm
  - C: 80 mm
  - D: 105 mm
  - E: 52 mm
  - F: 24.5 mm
