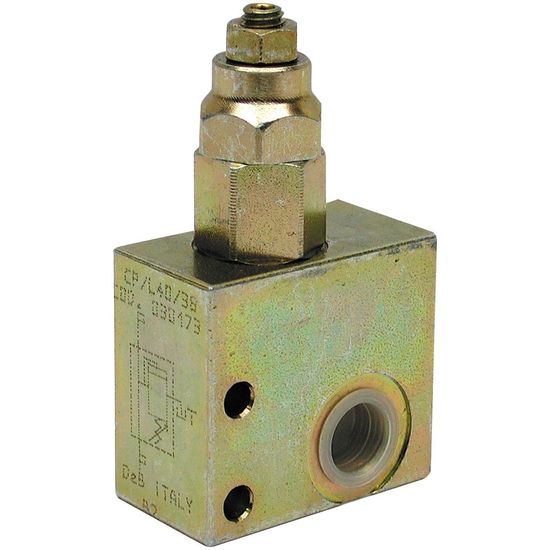

Pressure limiting valve 1/2" - max. 80 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM030343

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: CP/L/80/12U
  Setting range: 100-250 bar

  The pressure reducing valve is used to protect the system from damage due to overpressure.
  The valve is installed on the hose after the hydraulic pump or on the control valve to limit the pressure to the preset maximum value.
  The overpressure is returned to the tank.
  The overpressure valve can be adjusted from 100 to 250 bar.

  Technical specification:
  - steel frame
  - pressure range with standard springs: 100-250 bar
  - type: CP/L/80/12U
  - max. flow: 80 l/min
  - thread P - T: 1/2" R

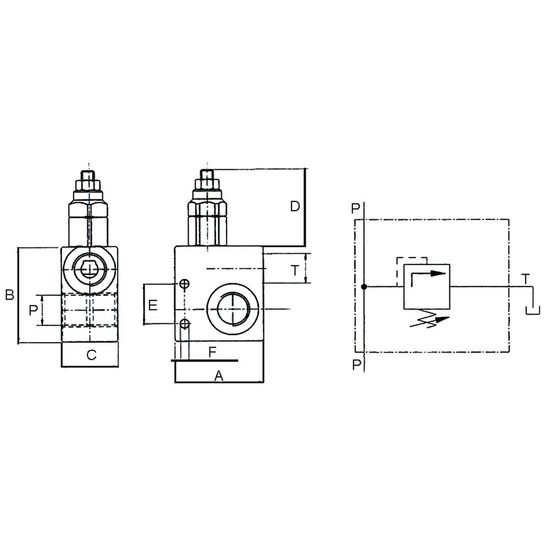

  Refer to image no. 2 for specific measurements:
  - A: 55 mm
  - B: 70 mm
  - C: 35 mm
  - D: 59 mm
  - E: 41 mm
  - F: 6.25 mm
