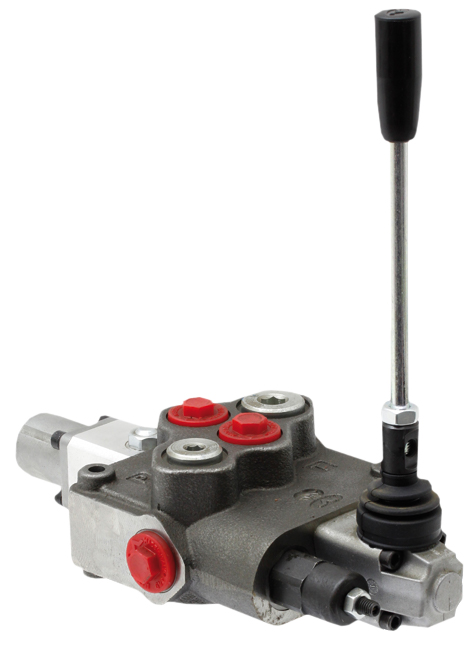

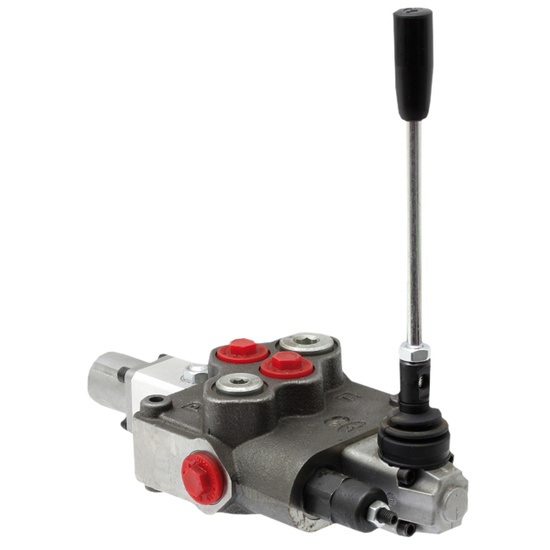

Monoblock Valve Double-Acting Float Position SD11-1-N-5VR13CL

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID86500202

  Manufacturer

  CharacteristicsType: 1 section
  Double-acting with Float position

  Control unit with one lever, with spring return, without pressure transfer capability
  Delivered with lever.

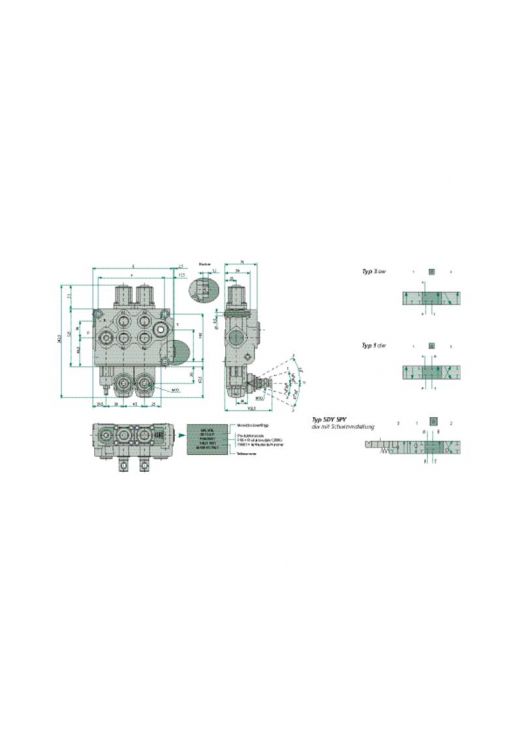

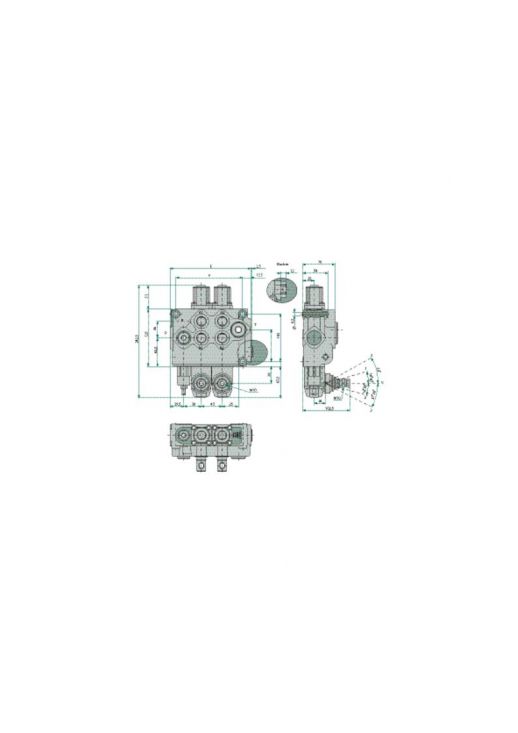

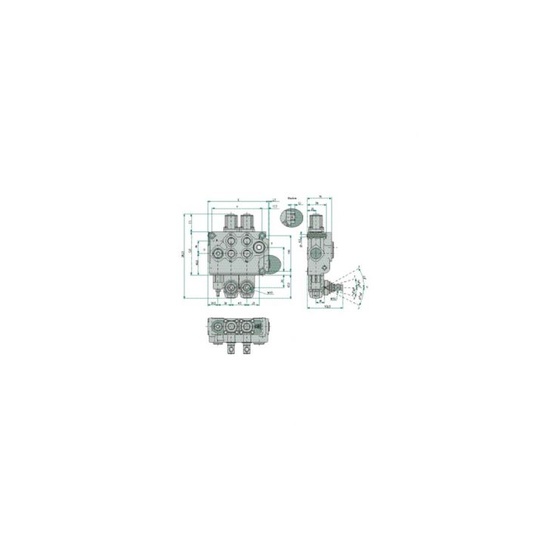

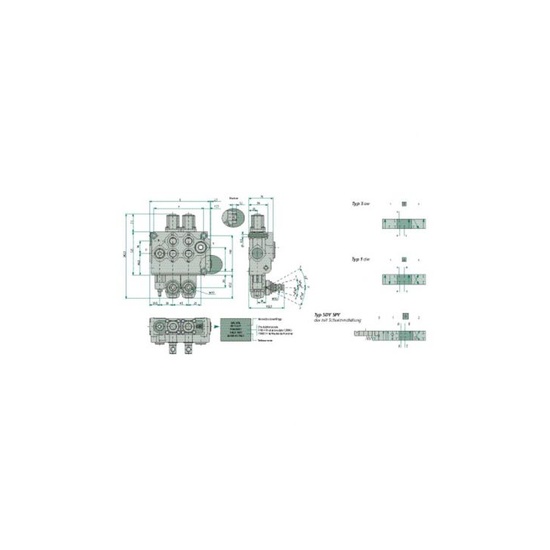

  Technical specification:
  - Spool function: 1 x double-acting with float position in port 3, locked in position 3
  - Connection thread: G 1/2
  - Nominal flow (l/min): 70
  - PN (bar): 315
  - E (mm): 130
  - Lever: 1
  - F (mm): 100
  - T port connection (BSP): G 3/4"
  - P port connection (BSP): G 1/2"
  - A-B port connection (BSP): G 1/2"

• Product groups
• Hydraulic Valves

• OEM part no.
• SD11-1-N-5VR13CL
