Lock Valve 3/8" - max. 35 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80230

  Manufacturer

  CharacteristicsType: VBPSE L
  Max pressure: 350 bar

  With a locking valve, you can lock the cylinder in a certain position.

  Technical specification:
  - type: VBPSE L
  - material: zinc-plated steel
  - BunaN seal
  - connection V1 V2: G 3/8"
  - connection C1 C2: G 3/8"
  - max. flow: 35 l/min
  - max. pressure: 350 bar
  - opening pressure: 3 bar

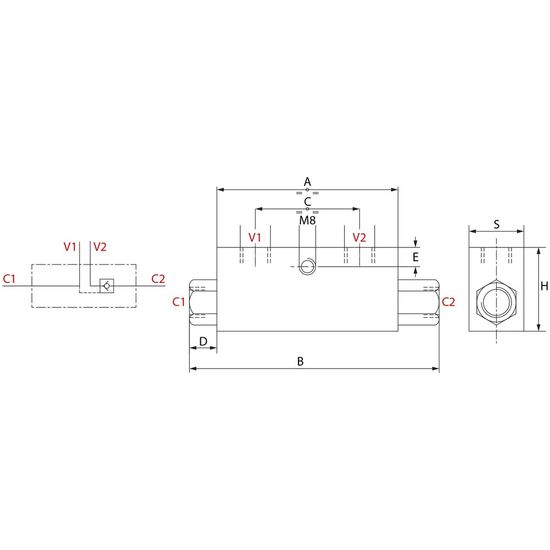

  See attached image for specific dimensions:
  - A: 80 mm
  - B: 120 mm
  - C: 38 mm
  - D: 16 mm
  - E: 8 mm
  - H: 40 mm
  - S: 30 mm
