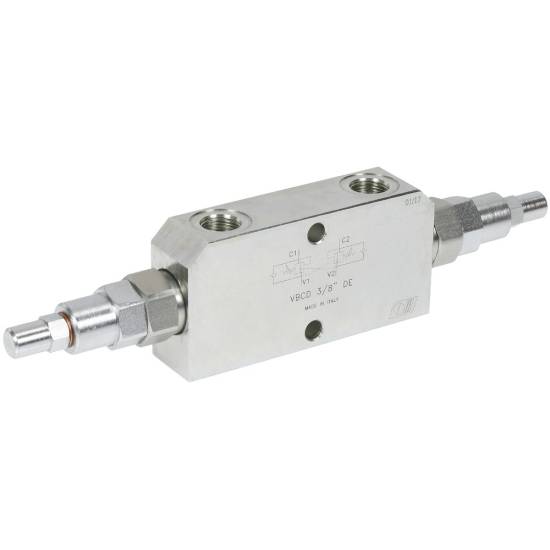

Load-Holding Valve 3/8" - max. 35 l/min

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDH80420

  ManufacturerOLEODINAMICA MARCHESINI

  CharacteristicsDouble-acting
  Type: Vbcdde

  A relief valve for dual pressure is used to control a heavy load in a controlled manner.
  The one working channel does not open until the control pressure for the other channel exceeds the set minimum value.

  Technical specification:
  - type VBCD DE
  - material galvanized steel
  - BunaN seal
  - connection V C: G 3/8"
  - pilot ratio 1:3.1
  - max. flow 35 l/min
  - max. pressure 350 bar (standard setting 320 bar)
