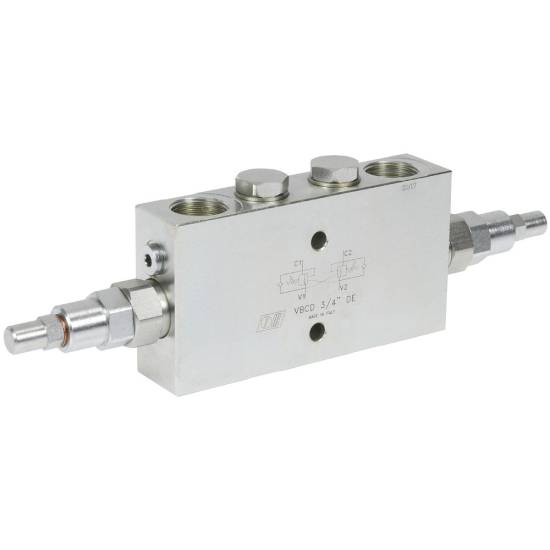

Load-Holding Valve 3/4" - max. 105 l/min

• Info
• Stock status

  Product IDH80431

  ManufacturerOLEODINAMICA MARCHESINI

  CharacteristicsDouble-acting
  Type: VBCD DE

  A relief valve for dual pressure is used to handle a heavy load in a controlled manner.
  One working channel does not open until the control pressure for the other channel exceeds the set minimum value.

  Technical specification:
  - type: VBCD DE
  - material: galvanized steel
  - BunaN seal
  - connection V C: G 3/4"
  - pilot ratio: 1:5.5
  - max. flow rate: 105 l/min
  - max. pressure: 350 bar (standard setting 320 bar)
