Hydraulic valve 3/8" - max. 45 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM926362

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 1 section
  Double-acting

  Valve package that returns to center position. The valve package comes with levers (with multiple mounting options) and
  adjustable relief valve. The valve cannot be series connected.

  Technical specification:
  - type: 1 section
  - size: 3/8"
  - sections: double acting
  - normal flow: 35 l/min
  - max. flow: 45 l/min
  - operating pressure: 250 bar
  - max. pressure: 320 bar
  - max. pressure on return side: 80 bar
  - relief valve set at 140 bar

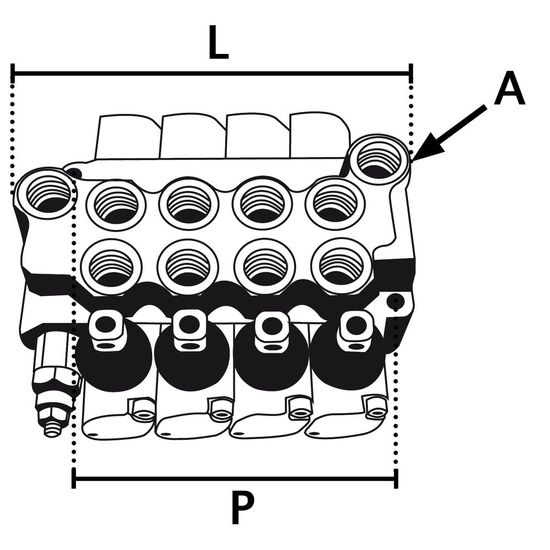

  - dimensions L: 85 mm
  - dimensions P: 46 mm
  - weight: 2.2 kg

  Compatible adapter for cable, part no: FM801023
