Hydraulic valve 3/8" - max. 35 l/min Type 3 sections

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM985046

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 3 sections
  1x single-acting, 2x double-acting

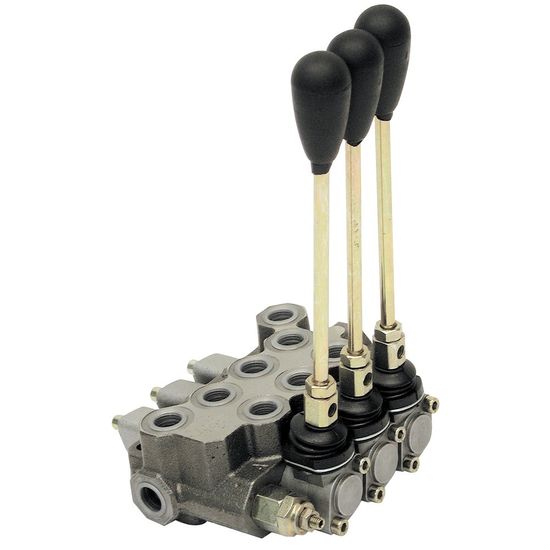

  Valve package that returns to mid position. The valve package comes with levers (with several mounting options) and
  adjustable relief valve. The valve can be connected in series with part number: FM832019

  Technical specification:
  - type: 3 sections
  - size: 3/8"

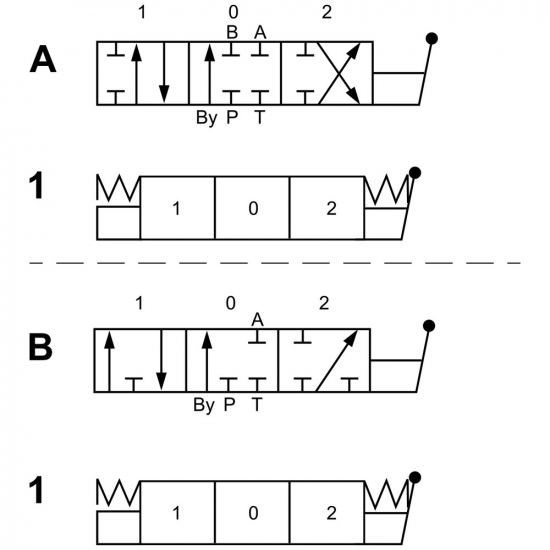

  - sections: 1x single-acting, 2x double-acting
  - normal flow: 25 l/min
  - max. flow: 35 l/min
  - operating pressure: 280 bar
  - max. pressure: 300 bar
  - max. pressure on return side: 80 bar
  - relief valve set at 140 bar

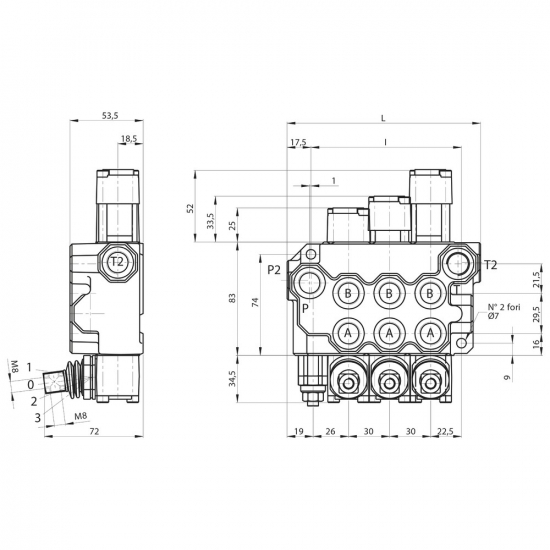

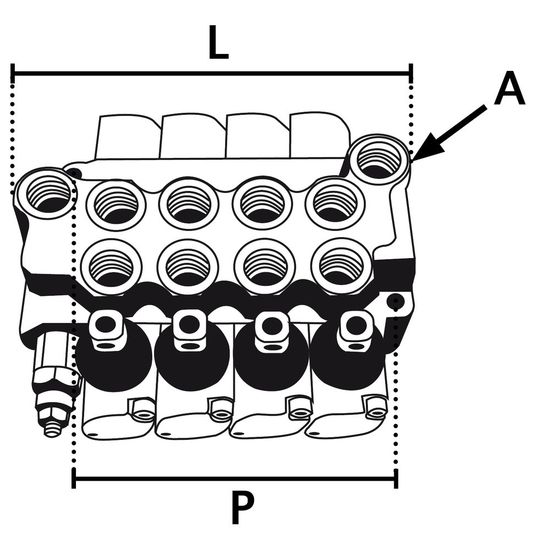

  - dimensions L: 141.5 mm
  - dimensions P: 110 mm
  - weight: 3.8 kg
