Hydraulic valve 3/8" - max. 35 l/min Type 2 sections

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDFM985081

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 2 sections

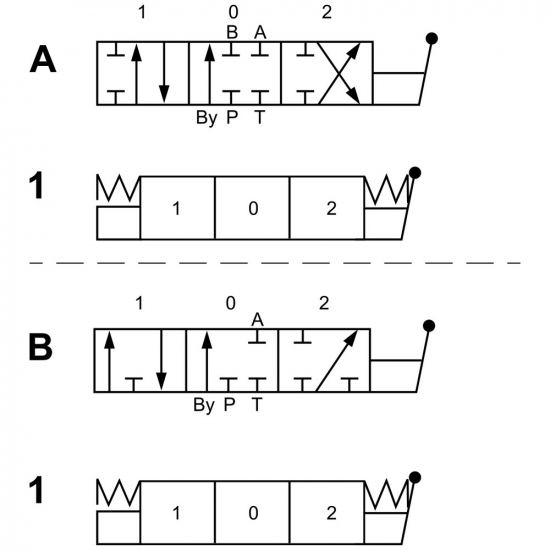

  1x single-acting, 1x double-acting

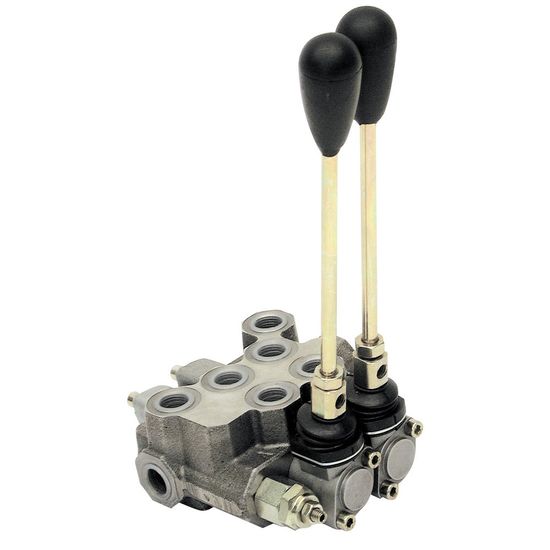

  Valve package that returns to neutral position. The valve package comes with levers (with multiple mounting options) and
  adjustable relief valve. The valve can be connected in series with part no.: FM832019

  Technical specification:
  - type: 2 sections
  - size: 3/8"
  - sections: 1x single-acting, 1x double-acting
  - normal flow: 25 l/min
  - max. flow: 35 l/min
  - working pressure: 280 bar
  - max. pressure: 300 bar
  - max. pressure on return side: 80 bar
  - relief valve set at 140 bar
  - dimensions L: 111.5 mm
  - dimensions P: 80 mm
  - weight: 2.7 kg
