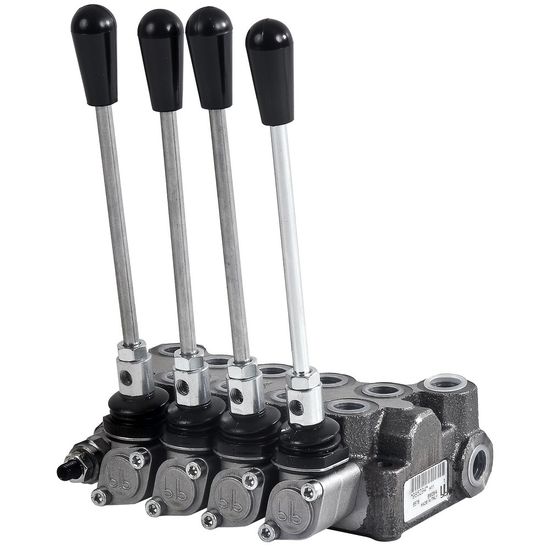

Hydraulic valve 3/8" - max. 35 l/min 4 sections

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDFM985010

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 4 sections
  Double-acting

  Valve package that returns to center. The valve package comes with levers (with multiple mounting options) and
  adjustable relief valve. The valve can be series connected with part number: FM832019

  Technical specification:
  - type: 4 sections
  - size: 3/8"
  - sections: double acting
  - normal flow: 25 l/min
  - max. flow: 35 l/min
  - working pressure: 280 bar
  - max. pressure: 300 bar
  - max. pressure on return side: 80 bar
  - relief valve set at 140 bar

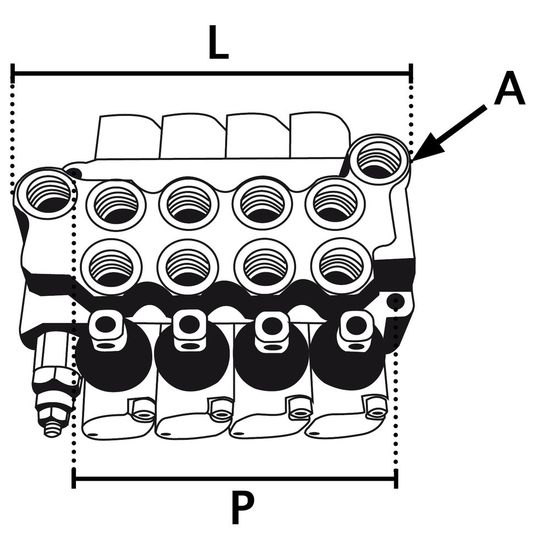

  - dimensions L: 171.5 mm
  - dimensions P: 140 mm
  - weight: 4.6 kg
