Hydraulic valve 3/8" - max. 35 l/min 3 sections

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDFM985008

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 3 sections
  Double-acting

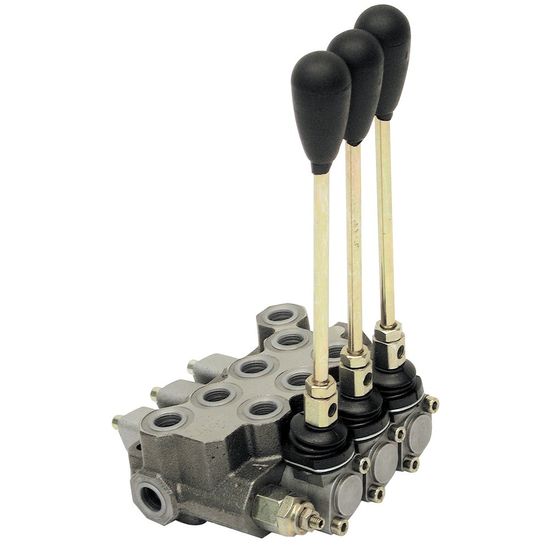

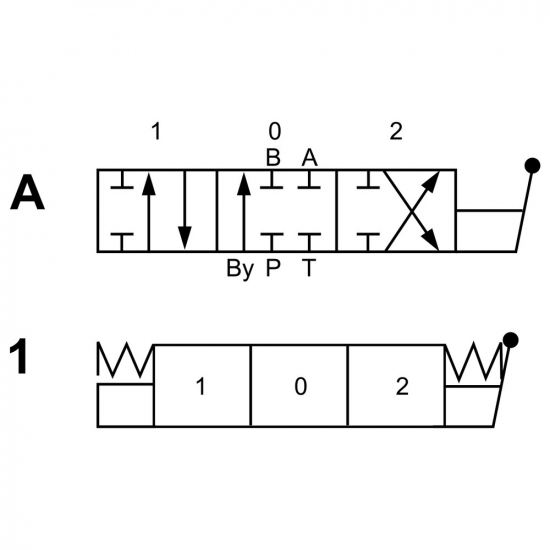

  Valve package that spring returns to center position. The valve package comes with levers (with several mounting options) and
  adjustable relief valve. The valve can be series connected with part number: FM832019

  Technical specification:
  - type: 3 sections
  - size: 3/8"
  - sections: double acting
  - normal flow: 25 l/min
  - max. flow: 35 l/min
  - working pressure: 280 bar
  - max. pressure: 300 bar
  - max. pressure on return side: 80 bar
  - relief valve set at 140 bar

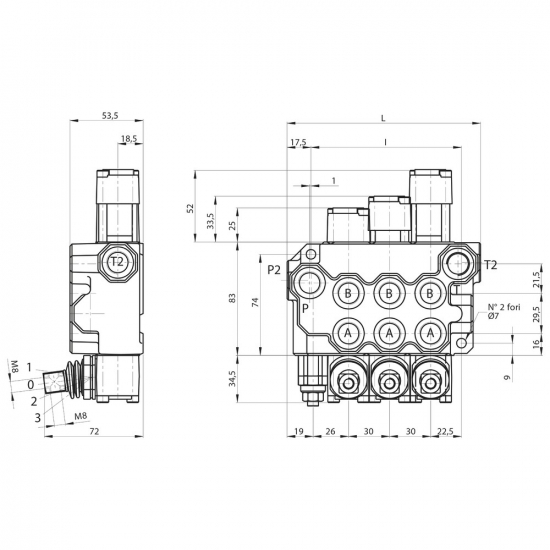

  - dimensions L: 141.5 mm
  - dimensions P: 110 mm
  - weight: 3.8 kg
