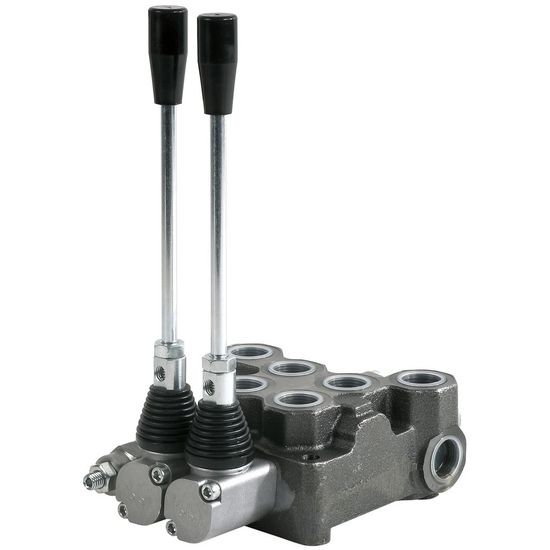

Hydraulic valve 3/4" - max. 130 l/min Type 2 sections

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDFM930003

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 2 sections
  Double-acting

  Valve package that returns to middle position. The valve package is supplied with levers (with several mounting options) and
  adjustable relief valve. The valve can be connected in series with part number: FM832015

  Technical specification:
  - type: 2 sections
  - size: 3/4"
  - sections: double acting
  - normal flow: 95 l/min
  - max. flow: 130 l/min
  - working pressure: 250 bar
  - max. pressure: 320 bar
  - max. return pressure: 80 bar
  - relief valve set at 140 bar

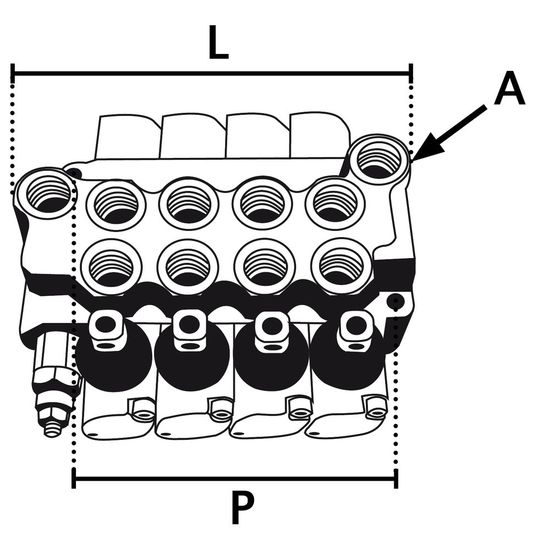

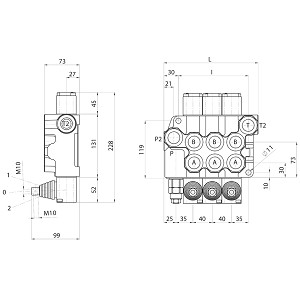

  - dimensions L: 155 mm
  - dimensions W: 105 mm
  - weight: 7.2 kg
