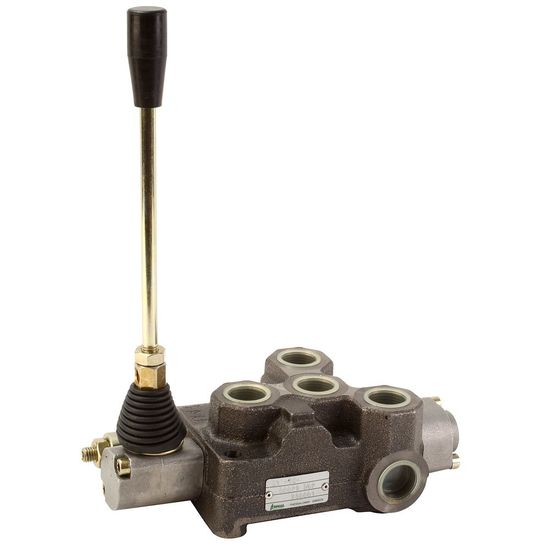

Hydraulic valve 3/4" - max. 130 l/min Type 1 section

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDFM930001

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 1 section

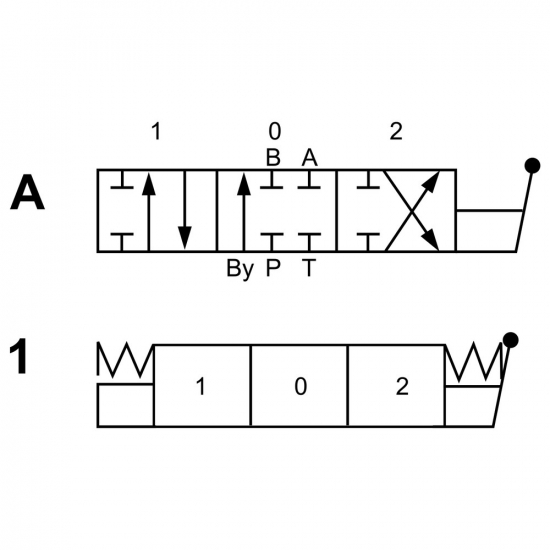

  Double-acting

  Valve package that resets to center position. The valve package is delivered with levers (with multiple mounting options) and
  adjustable relief valve. The valve is possible to connect in series with part number: FM832015

  Technical specification:
  - type: 1 sections
  - size: 3/4"
  - sections: double-acting
  - normal flow: 95 l/min
  - max. flow: 130 l/min
  - working pressure: 250 bar
  - max. pressure: 320 bar
  - max. pressure on return side: 80 bar
  - relief valve set at 140 bar

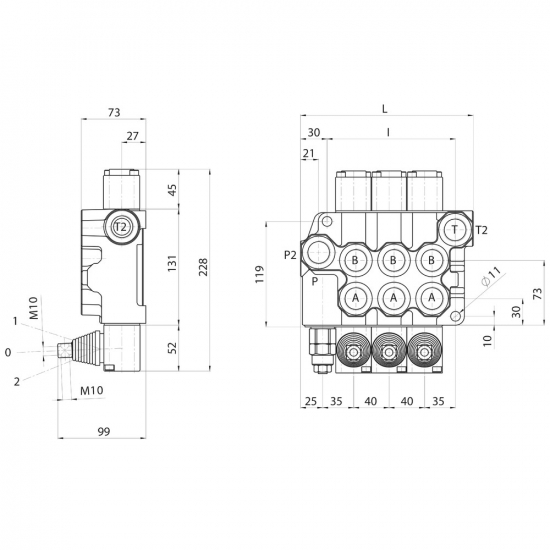

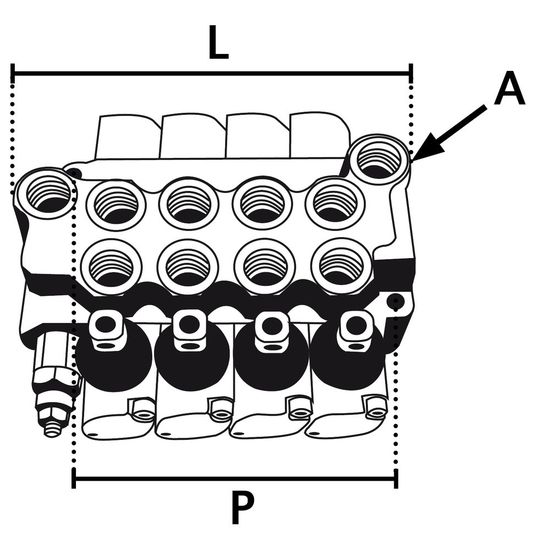

  - dimensions L: 115 mm
  - dimensions P: 65 mm
  - weight: 4.8 kg
