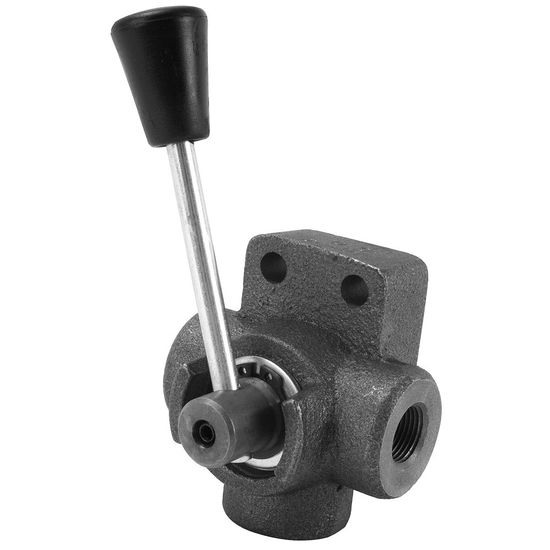

Hydraulic valve 1/2" - max. 90 l/min Model 358-B-3/ 31-12

• Info
• Stock status

  Product ID87001742

  Manufacturer

  CharacteristicsTwo-position selector valve
  Type: open center

  Material: Cast iron, BUNA-N seals.
  Max operating pressure: 315 bars
  Internal leakage: at 100 bar pressure difference: 4 cc/min
  Contamination level: 10 according to NAS1638, -/19/16 according to ISO 4406
  Oil temperature: -20° C to +80°C
  Viscosity: 15 - 75 mm˛/s
  Suitable for hydraulic oils based on mineral oil

  The valve CANNOT be switched under pressure, the control lever must always be in the end position.

  More information

  Connection BSP:G 1/2 "

  Maximum flow rate (l/min):90

  Code:30

  Connection function:P->B, P->A, open center

  L (mm):9

  C (mm):205.5

  D (mm):95

  E (mm):52

  R (mm):28

  S (mm):10.5

  I (mm):86

  F (mm):40

  H (mm):32

  G (mm):16

  N (mm):77

  M (mm):49
