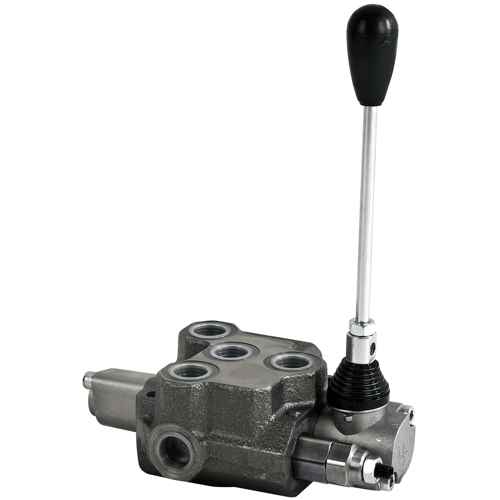

Hydraulic valve 1/2" - max. 70 l/min Double acting

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDFM990002

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 1 section
  Double-acting

  Valve package that returns to neutral position. The valve package is delivered with levers (with multiple mounting options) and
  adjustable pressure relief valve. The valve can be serially connected with part number: FM832004

  Technical specification:
  - type: 1 section
  - size: 1/2"
  - sections: double acting
  - normal flow: 50 l/min
  - max flow: 70 l/min
  - working pressure: 280 bar
  - max pressure: 300 bar
  - max pressure on return side: 80 bar
  - pressure relief valve set at 140 bar

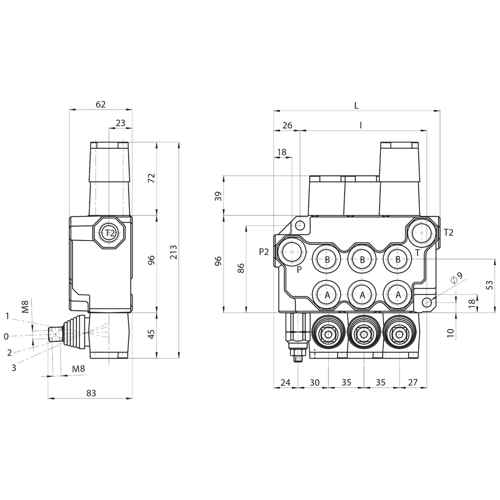

  - dimensions L: 94.0 mm
  - dimensions P: 55.0 mm
  - weight: 2.8 kg
