Hydraulic valve 1/2" - max. 70 l/min 4 sections

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDFM990009

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 4 sections
  Double-acting

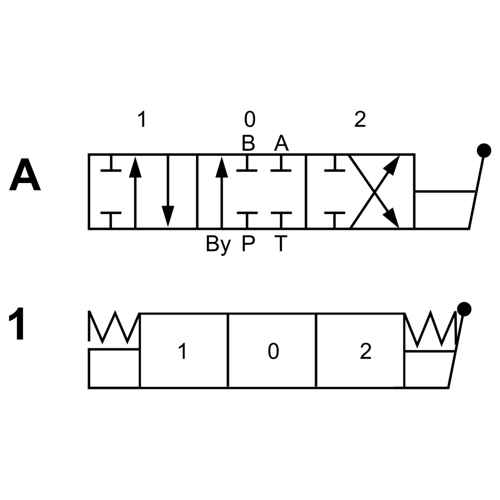

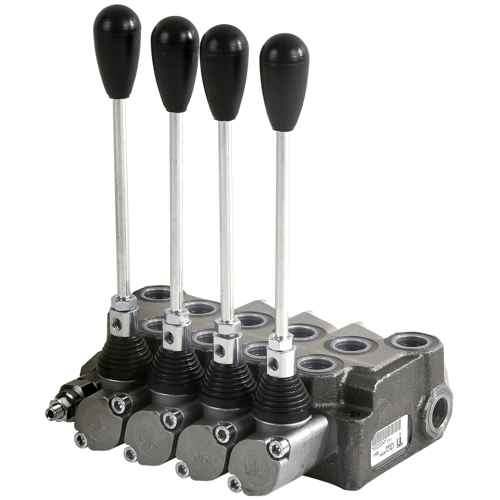

  Valve package that spring returns to middle position. The valve package is delivered with levers (with multiple mounting options) and
  adjustable relief valve. The valve can be series connected with part number: FM832004

  Technical specification:
  - type: 4 sections
  - size: 1/2"
  - sections: double acting
  - normal flow: 50 l/min
  - max. flow: 70 l/min
  - operating pressure: 280 bar
  - max. pressure: 300 bar
  - max. pressure on return side: 80 bar
  - relief valve set at 140 bar

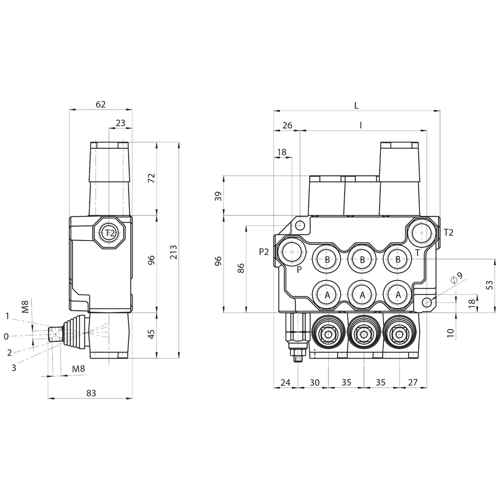

  - dimensions L: 199.0 mm
  - dimensions P: 160.0 mm
  - weight: 6.7 kg
