Hydraulic valve 1/2" - max. 70 l/min 3 sections

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDFM990007

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 3 sections
  Double-acting

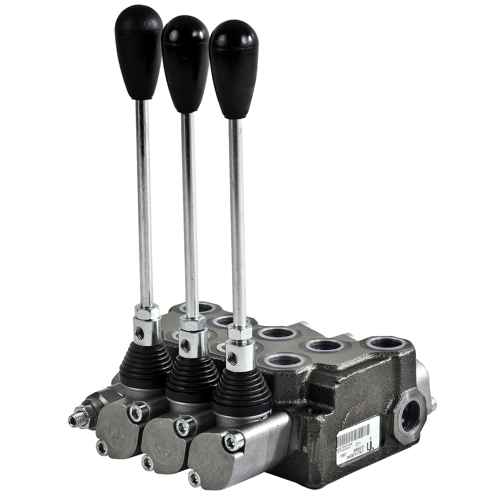

  Valve package that returns to center position. The valve package is supplied with levers (with multiple mounting options) and
  adjustable relief valve. The valve can be series-connected with part number: FM832004

  Technical specification:
  - type: 3 sections
  - size: 1/2"
  - sections: double-acting
  - normal flow: 50 l/min
  - max. flow: 70 l/min
  - working pressure: 280 bar
  - max. pressure: 300 bar
  - max. pressure on return side: 80 bar
  - relief valve set at 140 bar
  - dimensions L: 164.0 mm
  - dimensions P: 125.0 mm
  - weight: 5.5 kg
