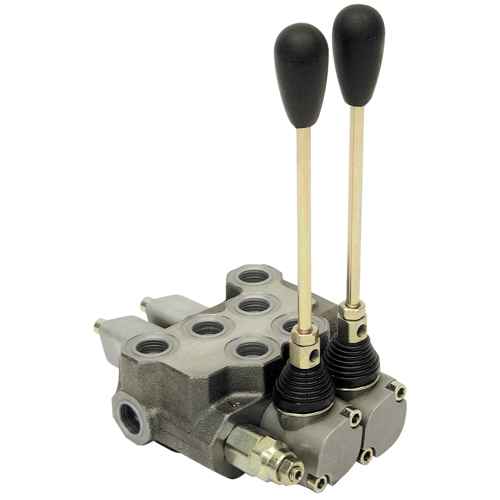

Hydraulic valve 1/2" - max. 70 l/min 2 sections

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM990005

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 2 sections
  Double-acting

  Valve package that returns to center position. The valve package is delivered with levers (with several mounting options) and
  adjustable relief valve. The valve can be connected in series with part number: FM832004

  Technical specification:
  - type: 2 sections
  - size: 1/2"
  - sections: double-acting
  - normal flow: 50 l/min
  - max. flow: 70 l/min
  - working pressure: 280 bar
  - max. pressure: 300 bar
  - max. pressure on return side: 80 bar
  - relief valve set at 140 bar

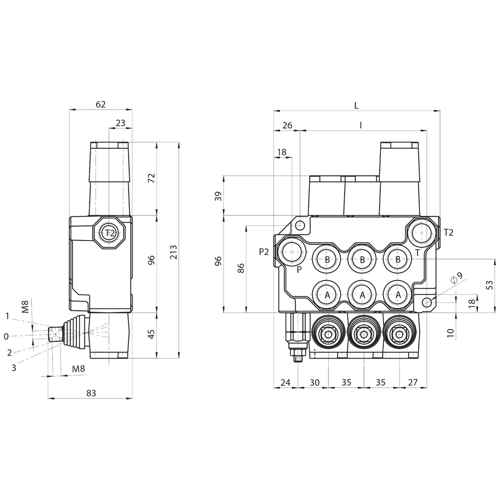

  - dimensions L: 129.0 mm
  - dimensions P: 90.0 mm
  - weight: 4.2 kg
