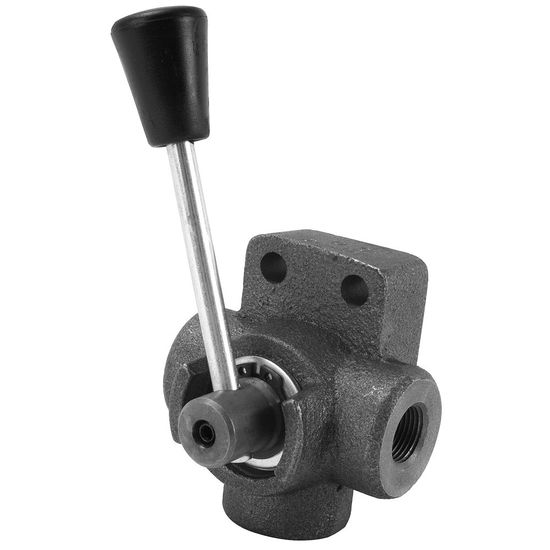

Hydraulic Valve 1/2" - max. 60 l/min Model D3G12A

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM030002

  ManufacturerBLB HYDRAULICS

  CharacteristicsTwo-position selector valve
  Type: open three-way valve
  Model: D3G12A


  Model: D3G12A

  Model explanation:
  - model D3G A is an open three-way valve: as the spool moves and one port closes, another port opens
  - model D3G C is of closed type: as the spool moves, all ports remain closed

  Two-position selector valve D3G A and D3G C is a three-way valve that allows controlling the oil flow in the hydraulic system to two separate hydraulic channels.
  When this selector valve is connected to a hydraulic system, two single-acting cylinders can be used with a three-way control valve.
  Before pressurization, choose which hydraulic circuit to use.

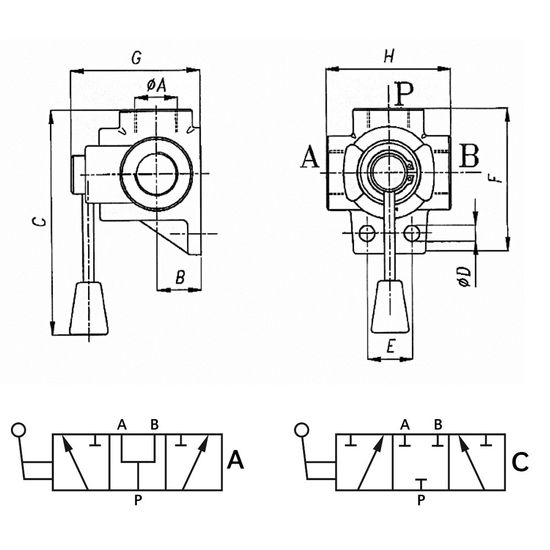

  Technical specification:
  - max. flow l/min: 60
  - max. pressure (bar): 250
  - threads A, B, P: 1/2" GAS
  - B: 25.5 mm
  - C: 145 mm
  - D: 11 mm
  - E: 32 mm
  - F: 94 mm
  - G: 70 mm
  - H: 83 mm
