Hydraulic valve 1/2" for Front Loader

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDFM990094

  ManufacturerBLB HYDRAULICS

  CharacteristicsMax. flow: 70 l/min
  1x double-acting with float, 1x double-acting

  Valve package that returns to center position. The valve package is delivered with levers (with several mounting options) and
  adjustable relief valve. The valve can be series-connected with part number: FM832004

  Technical specification:
  - type: 2 sections
  - size: 1/2"
  - sections: double-acting, float function in one e.g. for front loader
  - normal flow: 50 l/min
  - max. flow: 70 l/min
  - operating pressure: 280 bar
  - max. pressure: 300 bar
  - max. pressure on return side: 80 bar
  - relief valve set at 140 bar

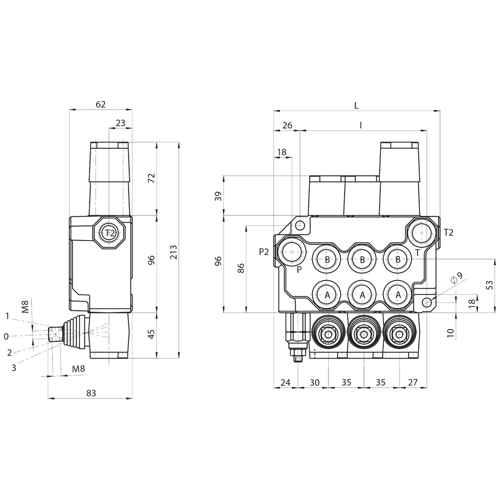

  - dimension L: 129.0 mm
  - dimension P: 90.0 mm
  - weight: 4.2 kg
